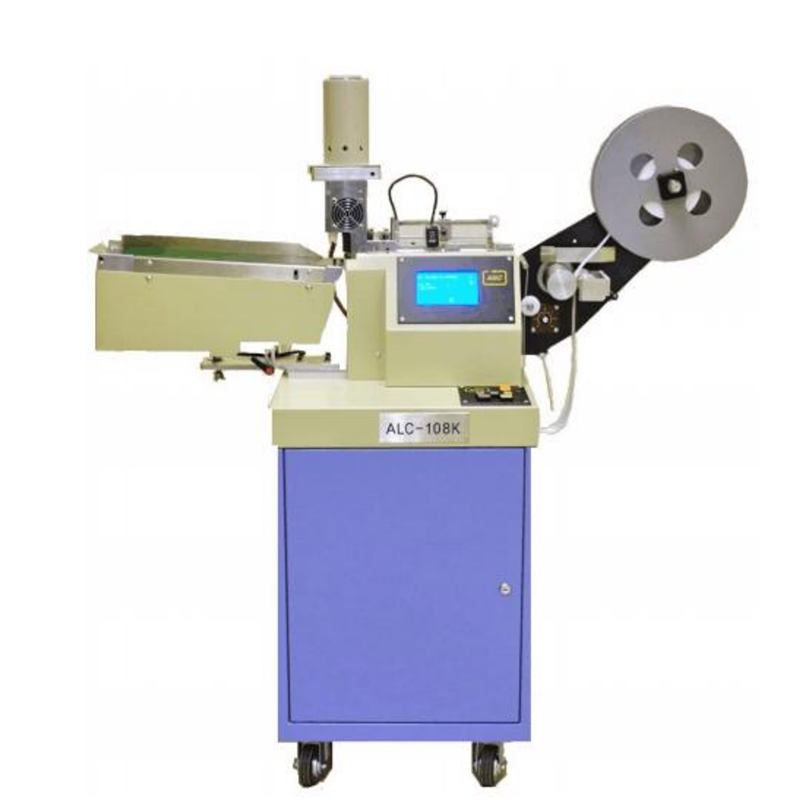

ALC-108K
HY
Product Advantage:
Multi-Fold Capability
Supports End Fold, Center Fold, and Manhattan (Mitre) Fold to meet diverse production needs.
Dual Cutting Options
Ultrasonic Cutting: up to 900 pcs/min, precise and sealed edges (no fraying).
Cold Cutting: up to 500 pcs/min, ideal for materials that do not require heat sealing.
Score Cut Function (Ultrasonic Only)
Ensures clean, smooth label edges without distortion.
Fast Changeover by User
Quick mold and mode switching design allows operators to change fold types or cutting methods easily.
Automatic Teach Pattern Sensor
Automatically detects label gap or mark position for accurate cutting.
Auto-Unwind Control
Automatic feeding system maintains stable tension and speed during production.
Touch-Screen Control Panel
Intuitive HMI interface with easy operation and real-time monitoring.
Technical Parameters:
| Label Width | Up to 50mm |
| Label Length | 1000mm max |
| Output Capacity | Ultrasonic up to 900pcs/min Cold Cut up to500pcs/min |
| Accuracy | ±0.5mm |
| Dimension | 65cm(L)*128cm(W)*135cm(H) |
Net Weight Ultrasonic Power Power | 160KG 30KHZ,600W 220VAC 1000W |
Product Uses:
Garment Label Manufacturers – For woven, satin, and printed care labels.
Footwear, Luggage, and Accessories – Producing brand, size, or instruction labels.
Textile and Home Décor Industry – Ideal for decorative and brand labels.
Automation Integration – Can be used as a folding & cutting unit in a label production line.
Product Operate Guide:
Install the Mold
Choose the desired folding mold (End / Center / Manhattan fold) and mount it securely.
Set Parameters
Adjust label length, select cutting type (Ultrasonic / Cold cut), and set output quantity.
Load Material
Insert the label roll into the auto-unwind system.
Automatic Detection
The sensor automatically detects label marks and teaches cutting position.
Start Production
The system performs feeding, cutting, and folding automatically.
Collect Finished Labels
Finished products are neatly stacked and ready for packaging or further processing
FAQ:
Q1: What folding styles does this machine support?
A: End Fold, Center Fold, and Manhattan (Mitre) Fold.
Q2: How can I switch between cutting methods?
A: The machine allows quick changeover — simply switch between the ultrasonic or cold cut head module.
Q3: What materials are suitable for ultrasonic cutting?
A: Woven or synthetic labels that require sealed edges.
Q4: What’s the difference between ultrasonic and cold cut?
A: Ultrasonic cutting seals edges (no fraying) and works faster, while cold cut is for materials sensitive to heat.
Q5: Can one person operate the machine?
A: Yes, the ALC-108K is designed for single-operator use with minimal setup time.
Q6: Can the machine detect label marks automatically?
A: Yes, it comes with an automatic teach pattern sensor for precise position detection.
