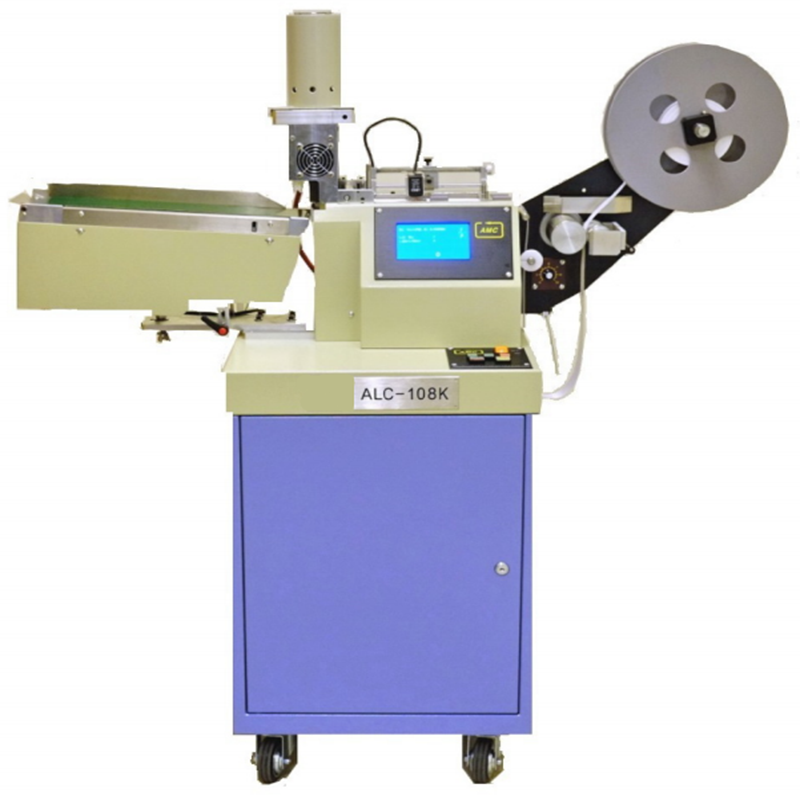

ALC-108K2
HY
Product Advantage
Multi-Fold Capability – Supports End Fold, Center Fold, and Manhattan Fold to suit various label types.
Dual Cutting Modes – Ultrasonic cutting (up to 900 pcs/min) and cold cutting (up to 500 pcs/min) for different materials.
Score Cut Function (Ultrasonic Only) – Delivers smooth, sealed edges without fraying.
Fast Changeover – Easy switching between fold types or cutting modes; user-friendly design reduces downtime.
Automatic Teach Pattern Sensor – Detects label marks automatically for precise cutting and folding alignment.
Auto-Unwind Speed Control – Maintains stable tension and consistent feed speed.
Touch-Screen Operation – Intuitive HMI with real-time monitoring and easy parameter adjustment.
Multi-Language Interface – Available in English, Chinese, and German.
Compact Design & High Accuracy – ±0.5mm precision; easy to install and operate with one operator.
Technical Parameters
| Label Width | Up to 80mm |
| Label Length | 1000mm max |
| Output Capacity | Ultrasonic up to 900pcs/min Cold cut up to 500pcs/min |
| Accuracy | ±0.5mm |
| Dimension | 65cm(L)*128cm(W)*145cm(H) |
Net Weight Ultrasonic Power Power | 165KG 20KHZ,600W 220VAC 1000W |
Major comparison of ALC-108K & ALC-108K2
| ALC-108K | ALC-108K2 | |
| Max cutting width(mm,both ultrasonic and cold cut) | 50 | 80 |
| Ultrasonic Cut | 30KHZ | 20KHZ |
| Ultrasonic Cutting Blade | AMC Standard | New for 80mm cut |
| Cold Cut | AMC Standard | New for 80mm cut |
| AMC Standard Ultrasonic Cutting Blade | Yes for 50mm cut | Yes for 50mm cut |
| AMC Standard Cold Cutting Blade | Yes for 50mm cut | Yes for 50mm cut |
| Unload | Optional Belt or Stacker | Belt Only |
Product Uses
Garment & Apparel Labels – Brand labels, care labels, and size labels.
Footwear, Bags & Accessories – For woven or printed brand tags.
Home Textiles & Gift Packaging – Suitable for decorative or product identification labels.
Label Production Lines – Can be integrated with printing or feeding machines for automated workflows.
Product Operate Guide
Install Folding Mold – Choose the desired fold type (end, center, or Manhattan) and mount the mold.
Set Parameters – Adjust label length, cutting mode (ultrasonic or cold cut), and production quantity.
Load Material – Insert the label roll into the auto-unwind unit.
Automatic Detection – The sensor automatically detects mark positions for accurate cutting.
Start Production – The machine automatically performs feeding, cutting, and folding.
Collect Finished Labels – Finished labels are neatly stacked for packaging or next processing step.
FAQ
Q: What folding types can this machine perform?
A: End Fold, Center Fold, and Manhattan (Mitre) Fold.
Q: What’s the difference between ultrasonic and cold cutting?
A: Ultrasonic cutting seals label edges (no fraying) and supports high-speed operation; cold cutting is used for heat-sensitive materials.
Q: How accurate is the cutting performance?
A: Cutting precision is within ±0.5 mm.
Q: How does the machine ensure correct label positioning?
A: It’s equipped with an automatic teach pattern sensor that detects label marks accurately.
Q: Can I switch languages on the interface?
A: Yes, the touch-screen interface supports English, Chinese, and German.
Q: Is the cold cut head included?
A: It’s optional — users can add the cold cut head module as needed.
