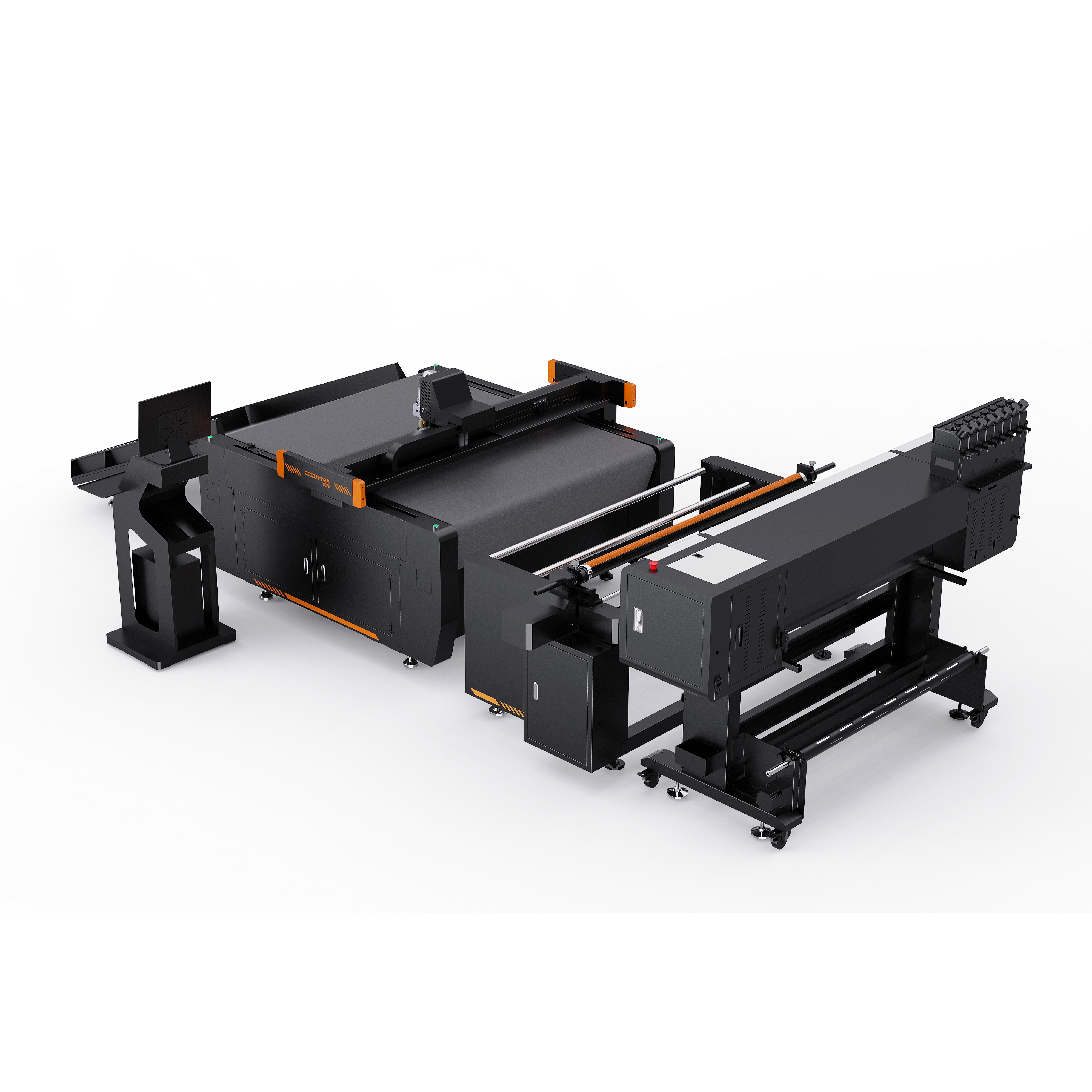

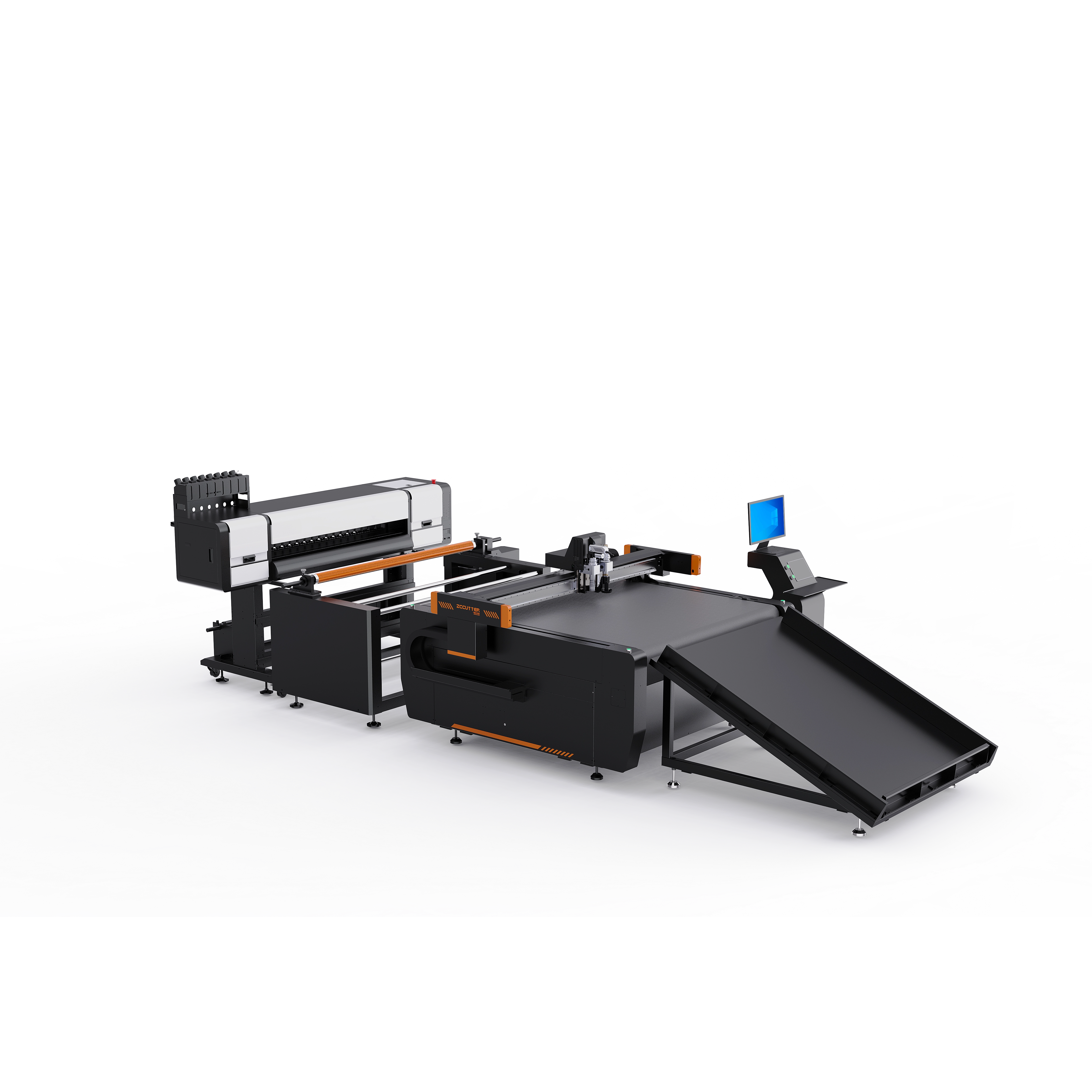

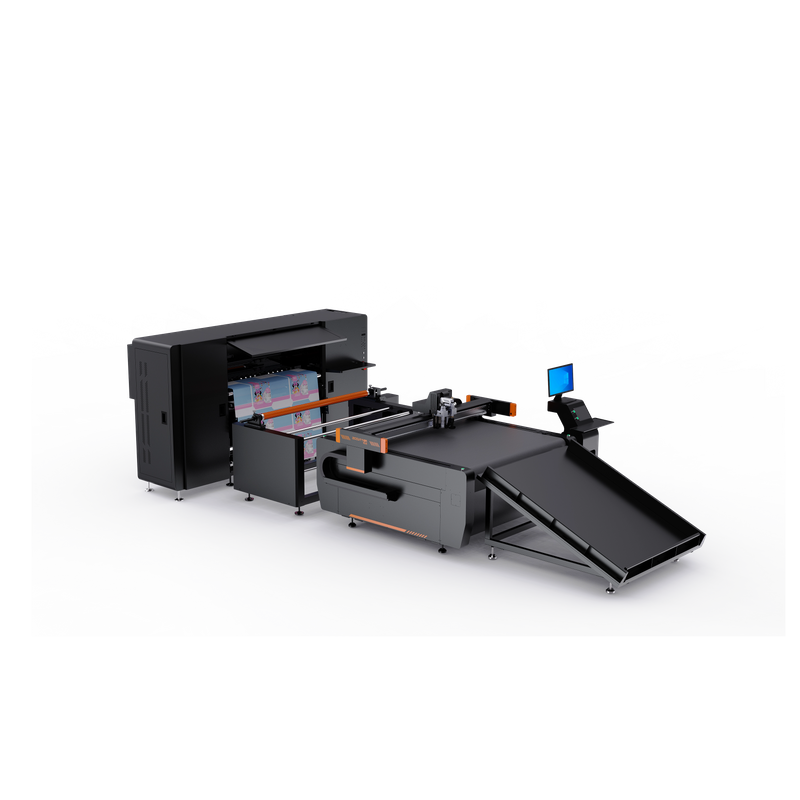

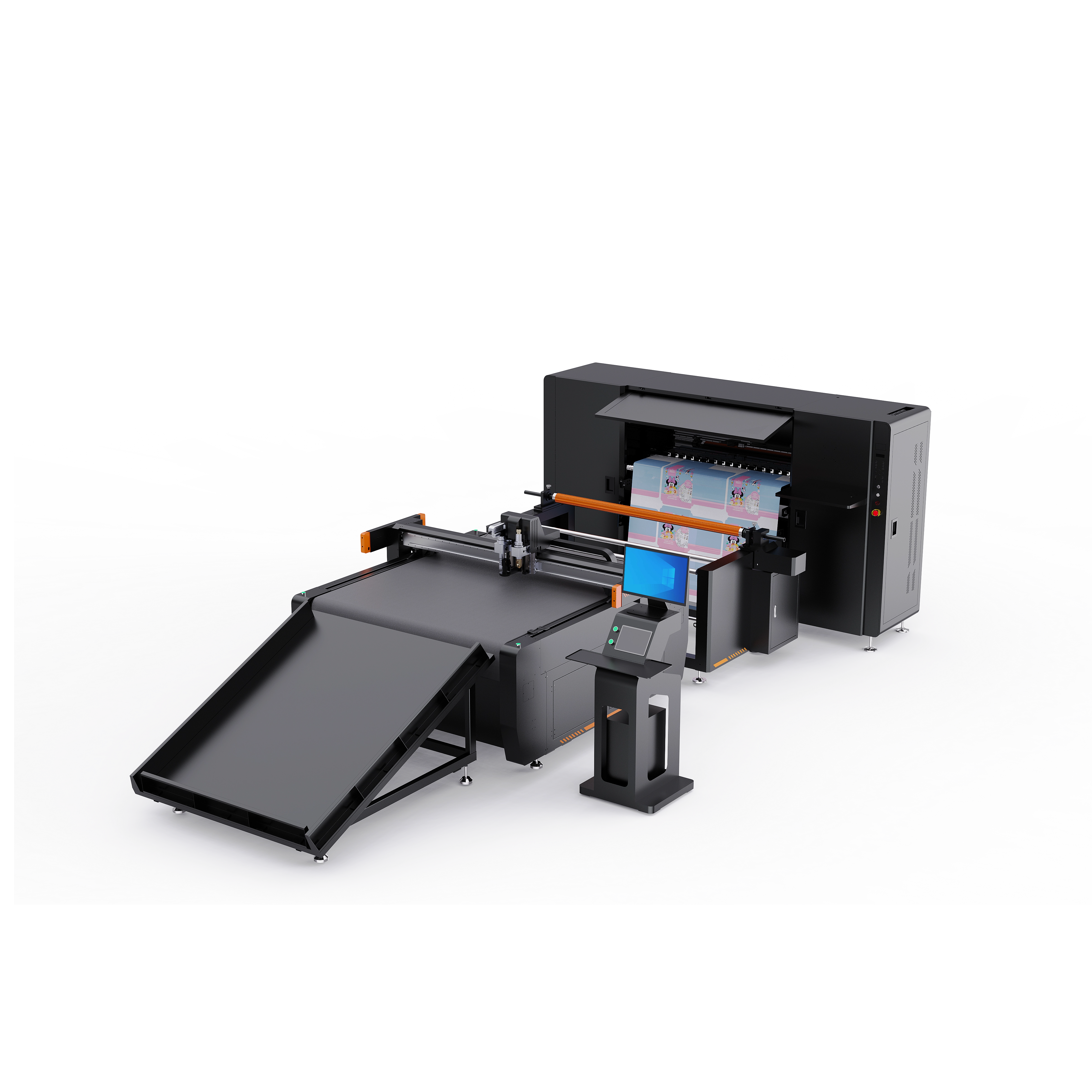

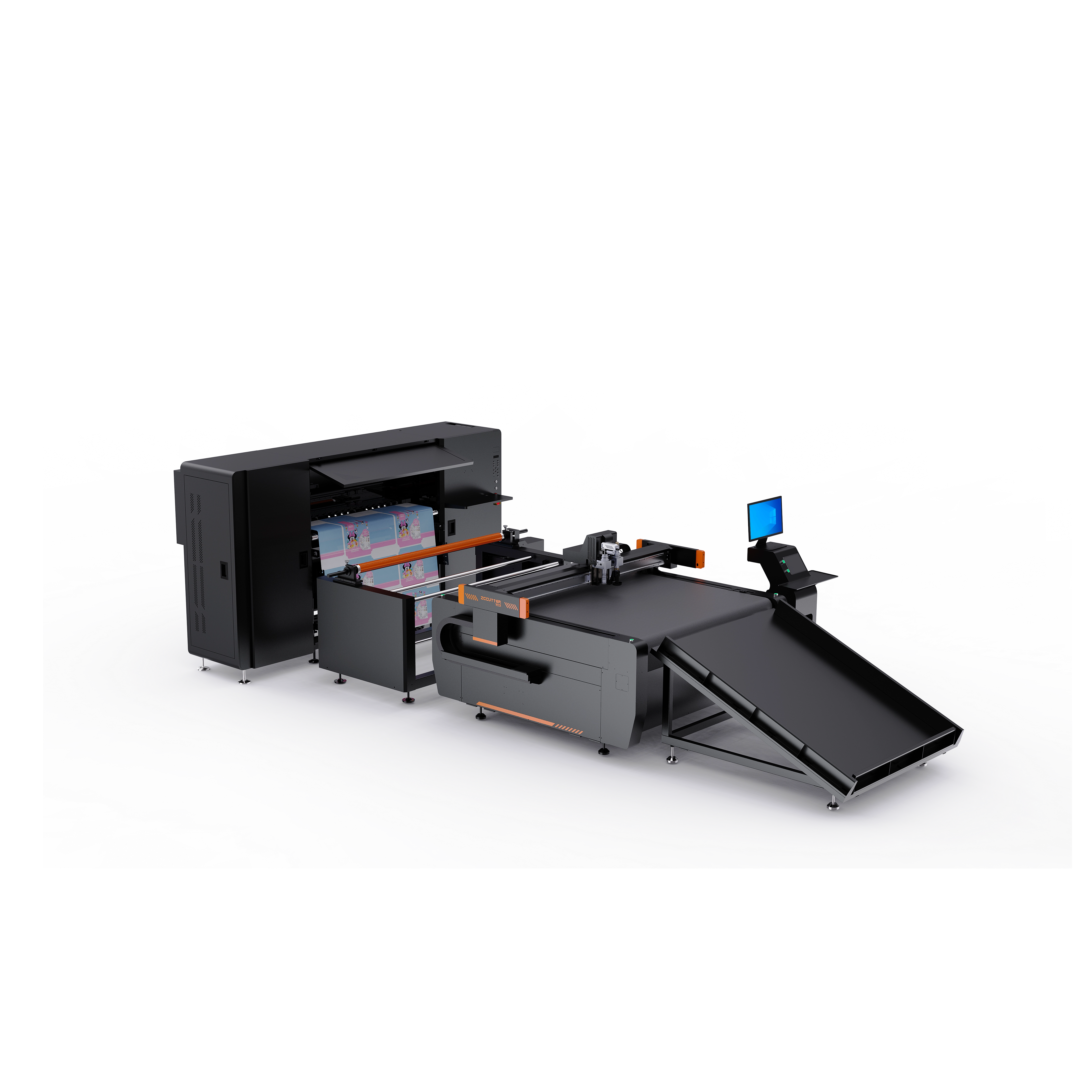

Automatic Inline Print Cut Packaging Machine

Product Introduction

ZCCUTTER ZCRB1014 is a professional all-in-one print and cut inline system specially developed for small-batch, multi-style and fast-delivery packaging customization. It integrates digital printing, material storage deviation correction and CNC cutting into one fully automatic production line.

Combined with BJD1302 dual-nozzle and BJD1304 four-nozzle digital printing units, the machine supports UV direct printing without coating, realizes high reduction of gold and silver cardboard, and delivers orders within 2.5 hours. With no plate making and no die cutting mold required, it perfectly solves traditional packaging pain points such as high MOQ, expensive mold cost, long production cycle and unprofitable small orders. It is the core mid-end equipment for small and medium packaging factories to upgrade flexible digital production capacity.

Integrated System Composition

The whole line realizes fully automatic workflow: Roll feeding → Digital printing → Material buffering → CCD visual deviation correction → Precision cutting → Automatic collecting. One worker can manage the whole production, no manual transfer needed.

• Digital Printing Unit: Compatible with BJD1302 (6–12㎡/h) and BJD1304 (20–30㎡/h). Support CMYK, white ink and varnish, gold and silver card restoration over 95%, ΔE ≤1.5.

• Material Storage Unit: Equipped with air expansion shaft and closed-loop tension control, suitable for 1300mm width roll material, effectively preventing stretching and wrinkling.

• Deviation Correction Unit: CCD visual edge tracking, correction accuracy ≤0.05mm, ensures accurate overprinting.

• Main Cutting Unit: Working area 1000×1400mm, dual tool head with vibration knife and creasing wheel, supports full cut, crease, half cut and dotted line.

• Collecting & Cloud Control System: Automatic stacking, one-click production scheduling, remote monitoring and unattended operation.

Product Advantages & Customer Benefits

1. No Plate & No Mold, Profitable Small Orders

   No printing plate and no die mold are needed. Support 1 piece minimum order. Factories can save hundreds to thousands of mold fees and cancel startup cost. Ordinary water-based orders keep gross margin 35%–45%, while UV high-end orders reach 60%–75%. Even 50-piece small orders and sample orders can gain stable profit.

2. Fully Automatic Inline Production, Ultra-fast Delivery

   The whole line runs unattended. Order changing only takes 5 minutes by one-click file import, supporting more than 8 box styles daily. Orders from 10 to 500 sets can be finished within 2.5 hours, much faster than traditional 3–7 days, helping customers seize urgent orders of e-commerce, beauty and food gift boxes.

3. Full Process Compatibility, Accept High-margin Orders

   It supports water-based printing and UV special processes such as reverse UV, partial varnish, frosted and cold stamping. Compatible with gold silver cardboard, PVC/PET film and special paper. Factories can take high-end customized orders without outsourcing, greatly improving profit space.

4. Three-level Upgradable System, No Repeated Investment

   ZCRB1014 is the mid-end core of ZCCUTTER solution. It shares the same software, hardware and operation system with entry-level and flagship models. Users can expand production by adding modules later, existing equipment can be integrated into new production lines, protecting investment and realizing flexible capacity expansion.

Technical Parameters

Application Scenarios

• E-commerce & live streaming gift box small batch customization

• Beauty, food and cultural creative high-end packaging

• Packaging sample making and small batch reorder

• Startup teams without traditional printing equipment

• Regional small and medium packaging factories for differentiated competition

FAQ

Q1: Does this machine require printing plate and die cutting mold?

A: No plate and no mold needed. It supports 1 piece minimum order, saving mold cost and shortening delivery time greatly.

Q2: What materials can it process?

A: It supports cardboard, gold silver card, coated paper, thin corrugated, PVC, PET film and various special paper, covering most packaging customization needs.

Q3: How fast is the order delivery?

A: Small batches of 10–500 sets can be completed within 2.5 hours, order changing only takes 5 minutes.

Q4: Is the machine upgradable later?

A: Yes. It belongs to ZCCUTTER three-level progressive solution. Software and hardware are interoperable, users can expand production line without abandoning existing equipment.

Q5: What after-sales support is provided?

A: Free on-site installation and training, 1-year warranty for whole machine, 2-year free software upgrade, 24h remote support and fast door-to-door service.
