Introduction
Can your cutting machine cut a full roll of fiberglass?
Our answer is always the same: YES!!! (And we say it out loud.)
This week, we spoke with two customers from different countries, each facing a unique cutting challenge.
The first was a customer from the United States who needed to cut full-roll fiberglass. Their material measured 50 inches wide, with a maximum roll weight of 1,200 kg—one of the heaviest fiberglass rolls we've handled.
The second was Mr. Nobi from the Philippines, who was looking for a solution to cut polycarbonate, ABS, and PVC foam board. His raw material sheets measured 1230 × 2450 mm, requiring both precision and production efficiency.
Recommended Cutting Solution
For both applications, we recommended the ZCRB2516 Double-knife Stand Stationary Computer Cutting Machine. Combining oscillating knife cutting with CNC routing in one system, it can process both flexible roll materials and rigid sheets with high precision, making it an ideal solution for manufacturers working with composites, plastics, packaging, and industrial materials.
1.STANDARD SPECIFICATIONS
NO. | DESCRIPTION OF GOODS | PIC |
1 | ZCRB2516 Double-knife Stand Stationary Computer Cutting Machine Electric vibration knife + electric spindle + laser positioning + dust collection device. Including ： 1.20 pc cut blade 2. Control software ( Be installed in customer’s computer 3. one vacuum pump 9KW 4. A set of toolbox 5. PLC touch screen operation. 6. Electric vibration knife + pneumatic vibration knife (interchangeable) + electric spindle engraving series. Not include air compressor HS CODE :8441100000 |  |
2 | Electric vibrating cutting head Used for cutting 3M, cardboard, gray cardboard, PET, PVC,PP film and corrugated cardboard. The thickness of the base film is greater than 0.05 mm. Cutting thickness less than 10 mm. |  |
3 | Polarized water-cooled ultra-high-speed electric spindle + dust collection device (Huadiao). Up to 40,000 RPM, ER11 collet for micro-diameter tools starting from φ0.5mm. φ62mm compact body with high torque and stable high-speed precision. Micro-pore creation for ultra-thin materials (starting from φ0.5mm). Applicable to materials such as acrylic sheets, PVC, ABS sheets, and sealing gaskets. |  |
4 | Cutting machine felt mat (log power) |  |

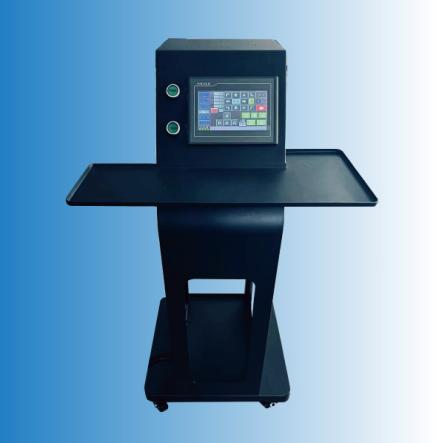

5 | ntegrated operation console +Computer (Lenovo) |  |

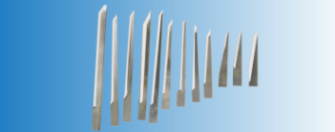

6 | Tungsten steel 30 × 0.63 × 6.5 mm. Used for cutting card stock and other materials with a straight blade. |  |
NOTE:
For the U.S. customer's fiberglass rolls, we also recommended an automatic unwinding stand (feeding rack), as shown in the video above. This ensures stable material feeding, improves cutting accuracy, and reduces manual handling.
If you need to cut roll materials, please let us know the following: Material width, Core (air shaft) inner diameter and Maximum roll weight.
With this information, we can customize the unwinding stand to match your production requirements.
2.Product Configuration
Model | ZCRB2516 Double-Knife-Holder Stationary Table CNC Cutting Machine Pneumatic Vibrating Knife + Electric Spindle + Laser Positioning + Dust Collection Device |
Cutting area(mm) | Maximum cutting area：2500(W)×1600(L)mm |
Engraving area(mm) | Maximum engraving area: 2500(W)×1300(L)mm (affected by the dust collection device at the spindle mounting location) |
Dimension (mm) | 3500*2250*1400mm |
Cutting material | Leather, fabric, silicone foam, rubber and plastic foam, sound-absorbing cotton, sound-insulating cotton, etc. |
Maximum cutting thickness | 0–60mm |
Maximum carving thickness | 0-45mm |
Positioning accuracy | ≤0.1mm |
Fixing method | Vacuum adsorption with a 9KW high-pressure turbine fan and an 8-zone aluminum honeycomb vacuum adsorption platform. |
Cutting accuracy | ≤0.1-0.5mm（Depending on the material thickness and hardness, blades thicker than 10mm will have a correspondingly larger blade width.） |
Cutting minimum circle radius | ≥3-10mm；（Depending on the material thickness and hardness, blades thicker than 10mm will have a correspondingly larger blade width.） |
Control system | PLC color touchscreen + ZCCUTTER CNC system, supporting DXF/PLT/AI import. |
Transmission/Components | Delta servo motors / HIWIN linear guides / precision-ground helical racks, aerospace-grade aluminum crossbeams |
Summary
From fiberglass and carbon fiber to fabrics, foam, rubber, composites, and other flexible materials, we welcome sample testing. Send us your material, and let our machine do the talking.
