HY-886+HY-S580
The HY-886 Multifunction Label Cutting and Folding Machine combined with the HY-S580 Single-Side Label Visual Inspection System provides an integrated solution for textile label finishing and quality inspection. The HY-886 performs multiple folding styles, including center fold, end fold, envelope fold, mitre fold, and book cover fold, with both hot and cold cutting options. The HY-S580 uses AI-powered vision technology and a high-definition industrial camera to inspect labels for stains, notches, centering errors, text defects, and missing threads. It also works with compatible downstream equipment to remove defective labels, helping improve production efficiency and quality control.

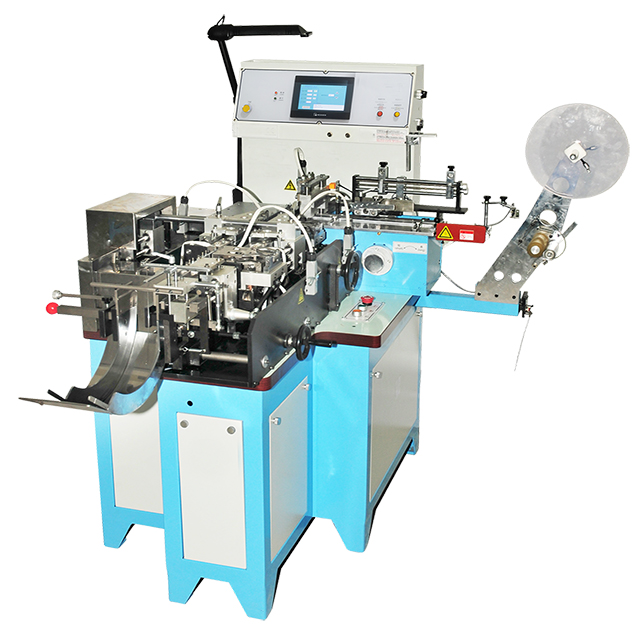

The HY-886 is designed for center folding after two-end folding and can also produce uneven two-end folds, envelope folds, center folds, mitre folds, and book cover folds. Its multifunctional design allows manufacturers to handle different label styles using one machine, helping reduce the need for separate folding equipment. It is suitable for textile label producers serving different garment and apparel applications.
The HY-886 supports both hot cutting and cold cutting, giving manufacturers flexibility when processing different label materials and edge-finish requirements. The appropriate cutting method can be selected according to the material, label design, and production needs. Combined with its folding functions, the machine supports efficient label finishing in a single processing stage.

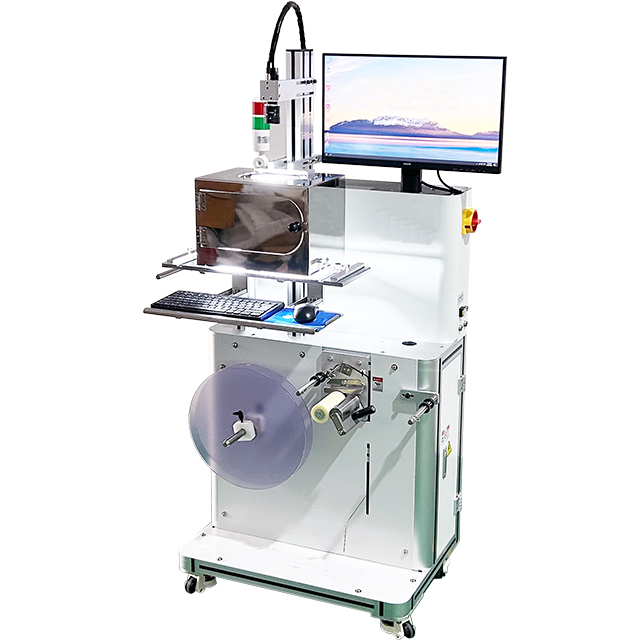

The HY-S580 features a built-in AI visual inspection system and one high-definition industrial camera for single-side label inspection. It is designed to identify common visible defects, including surface stains, label notches, centering errors, text defects, and missing threads. Automated visual inspection helps reduce dependence on manual checking and supports more consistent quality control during label production.
The HY-S580 works with compatible downstream equipment to remove labels identified as defective during inspection. This helps separate nonconforming labels from acceptable products and reduces the need for manual sorting. The rejection method depends on the connected equipment and production line configuration, allowing the inspection system to be incorporated into a suitable label-processing workflow.
The HY-886 has a stated production speed of 0–200 pieces per minute. The HY-S580 has a stated cutting speed of 0–200 pieces per minute, with a label inspection range of 10–60 mm in width and 35–170 mm in length. Actual throughput depends on label specifications, machine settings, inspection requirements, and production-line configuration.
The HY-886 and HY-S580 combine label folding and cutting with AI-based visual inspection and defective-label removal. This configuration helps manufacturers address both label finishing and quality control within a coordinated production workflow. It is particularly useful for businesses seeking to reduce manual inspection and improve consistency. The actual connection method and overall line speed should be confirmed according to the required setup.
Standard Cutting Method | Ultrasonic Cutting |
Optional Cutting Method | Cold Cutting |
Cutting Speed | 0-200 pcs/min |
Vision Inspection Speed | 0-200 pcs/min |
Dimension | 2024L×750W×1470H(mm) |
Weight | 270KG |
Voltage | 220V AC 50Hz |
Power5 | 2KW |
Defect Mark Inspection | Supported |
Surface Stain Inspection | Supported |
Label Length Measurement | Supported |
Barcode Reading | Supported |
Defective Label Rejection | Via Compatible Downstream Equipment |
Applicable Materials | Various Printed Fabric Labels |
The combined solution is suitable for garment label manufacturers producing brand labels, size labels, and care labels. The HY-886 processes labels into the required fold styles and cuts them using the selected cutting method. The HY-S580 then checks one side of the labels for configured defects, helping manufacturers maintain consistent appearance and quality before labels proceed to subsequent production stages.
For woven and printed textile labels, the HY-886 supports different folding formats and hot or cold cutting. The HY-S580 inspects the label surface for visible stains, notches, centering errors, text defects, and missing threads. The combination is suitable for manufacturers handling different label designs and quality requirements, subject to material and machine compatibility.
Manufacturers producing labels with different folding requirements can use the HY-886 for center folds, end folds, envelope folds, mitre folds, book cover folds, and other supported formats. This flexibility is useful for suppliers serving multiple garment brands or product categories. The HY-S580 adds a visual inspection stage to help identify defects in the processed labels.
The HY-S580 can be used with compatible downstream equipment to remove defective labels detected during inspection. When combined with the HY-886, it supports a workflow that includes folding, cutting, visual inspection, and defective-label handling. The actual level of automation depends on the equipment connection, material handling method, and production-line layout.
First, configure the HY-886 according to the required label dimensions, folding style, and cutting method. Run sample labels to verify the fold and cut quality. Next, set up the HY-S580 camera and AI inspection program according to the label design and required defect criteria. Test the system using both acceptable and defective samples, then confirm that the connected downstream equipment removes defective labels correctly. Before continuous production, verify machine synchronization, label compatibility, and the required operating speed.

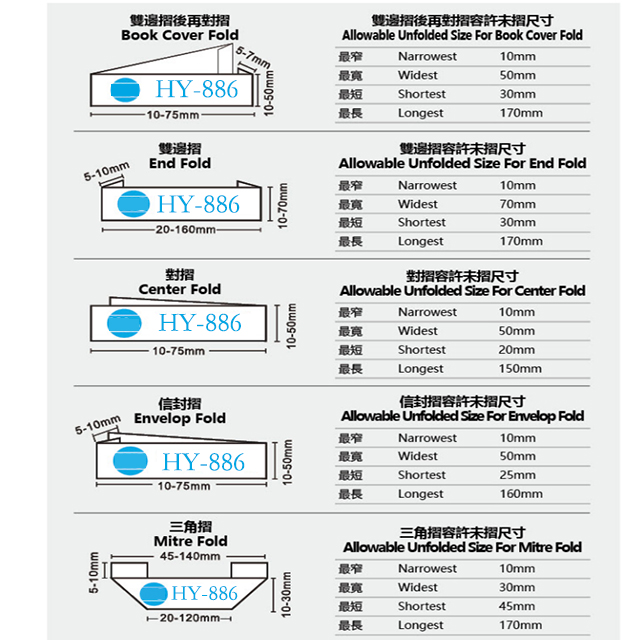

The HY-886 supports center fold, end fold, envelope fold, mitre fold, and book cover fold. It is designed for center folding after two-end folding and can also produce uneven two-end folds. The suitable configuration depends on the label design and required folding style. Please provide a sample or drawing to confirm compatibility.
Yes. The HY-886 supports both hot cutting and cold cutting. The appropriate method depends on the label material, desired edge finish, and production requirements. If you have specific material or cutting-quality requirements, provide label samples so the suitable cutting method can be evaluated.

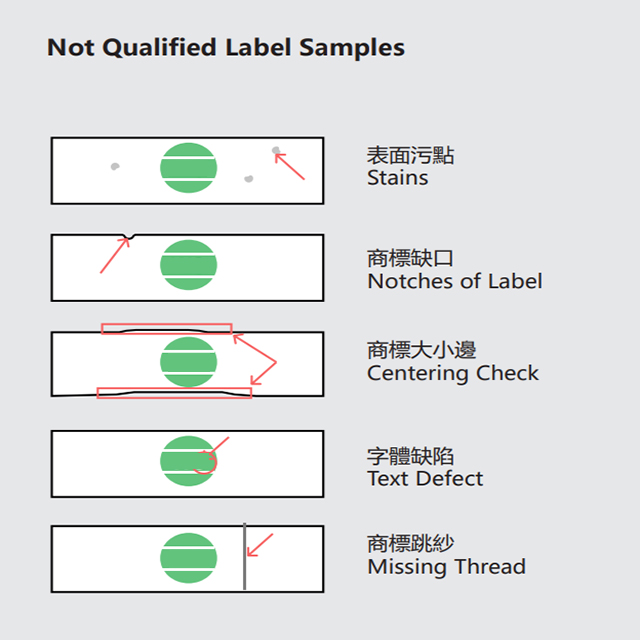

The HY-S580 is designed to inspect one side of a label for surface stains, label notches, centering errors, text defects, and missing threads. Actual detection performance depends on the label material, defect characteristics, image quality, and inspection settings. Testing with representative samples is recommended before confirming performance.
The stated inspection range is 10–60 mm in label width and 35–170 mm in label length. Actual compatibility may vary depending on the machine configuration and production setup. Please provide your label dimensions and samples so the required specifications can be checked.
The HY-S580 works with compatible downstream equipment to remove labels identified as defective. The rejection mechanism depends on the connected equipment and production-line configuration. Before purchasing, confirm the required rejection method and how the inspection system will connect with your existing or planned production line.
The HY-886 has a stated production speed of 0–200 pieces per minute, while the HY-S580 has a stated cutting speed of 0–200 pieces per minute. These figures do not necessarily represent the output of the combined line. Actual throughput depends on synchronization, label specifications, inspection settings, and downstream handling.
