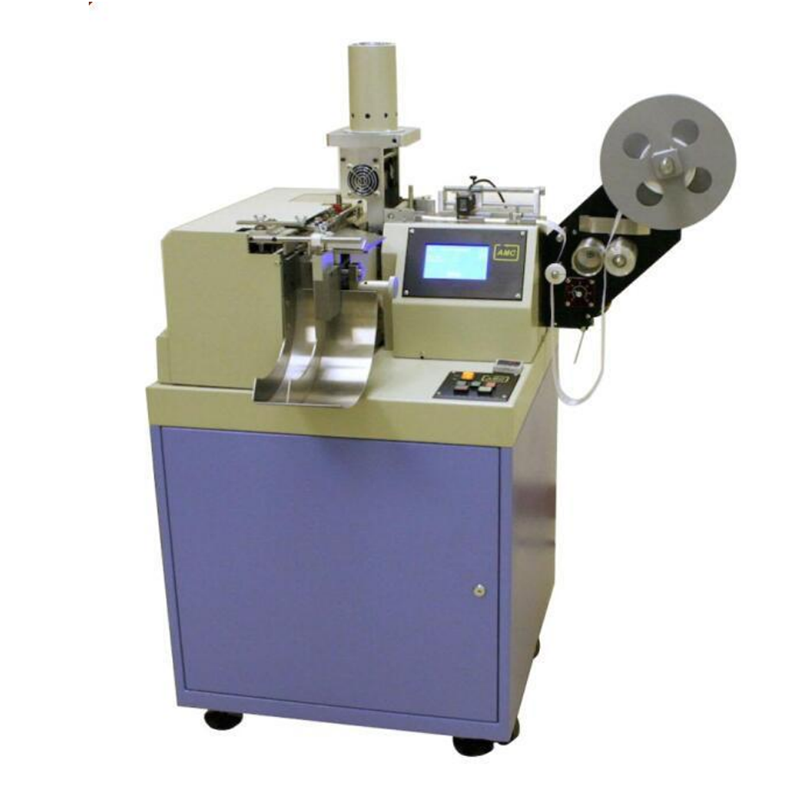

ALF-300K
HY
Product Advantage
Dual Cutting Modes – Choose between Ultrasonic cutting (up to 280 pcs/min) for sealed edges and Cold cutting (up to 250 pcs/min) for heat-sensitive materials.
Flexible Folding Options – Supports Center Fold (Loop Fold) or Cut-only operation for a variety of label types.
Adjustable Fold Length – Fold length adjustable from 20mm to 150mm, ideal for different label sizes.
Fast Changeover – User-friendly design allows quick switching between folding or cutting modes without tools.
Optional Anti-Static System – Prevents static buildup during high-speed label feeding and cutting.
Automatic Teach-Pattern Sensor – Precisely detects label marks or cutting points for consistent accuracy.
Auto-Unwind Speed Control – Ensures stable material feeding and smooth operation.
Touch-Screen Interface – Easy operation and real-time monitoring through an intuitive HMI control panel.
Multi-Language Operation – Interface available in English, Chinese, and German.
Compact, Efficient Design – Easy to install, operate, and maintain; ideal for continuous production lines.
Technical Parameters
| Label Width | 12mm-50mm |
| Label Length | 40mm-300mm |
| Output Capacity | Ultrasonic up to 900pcs/min Cold cut up to 250pcs/min |
| Fold Length | 20-150mm(or cut only) |
| Dimension | 82(L)*110(W)*135(H)cm |
| Accuracy | ±0.5mm |
Net Weight Ultrasonic Power Power | 230KG 30KHZ,600W 220VAC 1000W |
Product Uses
Garment & Apparel Labels – Ideal for care labels, brand labels, and size labels with center or loop folds.
Home Textiles & Towels – Suitable for long woven labels with loop folds.
Shoes, Bags & Accessories – Produces clear and durable brand tags or decorative labels.
Label Production & Printing Lines – Can integrate into semi-automatic or fully automated production setups.
Product Operate Guide
Install the Mold or Tooling – Choose the folding or cutting mode and set up the corresponding parts.
Set Machine Parameters – Adjust label length, fold length, and choose cutting mode (ultrasonic or cold cut).
Load Material Roll – Place the label tape into the auto-unwind system.
Automatic Detection – The teach-pattern sensor detects cutting marks automatically.
Start Production – The machine performs cutting and folding automatically with consistent speed and precision.
Collect Finished Labels – Folded or cut labels are neatly stacked for packaging or further processing.
FAQ
Q1: What folding types does the ALF-300K support?
A: Center Fold (Loop Fold) and Cut-only.
Q2: What’s the maximum fold length?
A: Up to 150mm after fold.
Q3: Can I choose between ultrasonic and cold cutting?
A: Yes, both options are available. The cold cut head module can be added as an option.
Q4: What materials can it process?
A: Woven labels, printed labels, satin labels, and other textile materials.
Q5: Is it suitable for heat-sensitive materials?
A: Yes, simply switch to the cold cut option.
Q6: How does it ensure cutting accuracy?
A: The machine uses an automatic teach-pattern sensor to detect label positions precisely.
Q7: Does it support multiple languages?
A: Yes, the touch-screen interface is available in English, Chinese, and German.
Q8: Can it be used in an automated line?
A: Yes, it can easily be integrated into existing label printing or cutting systems.
