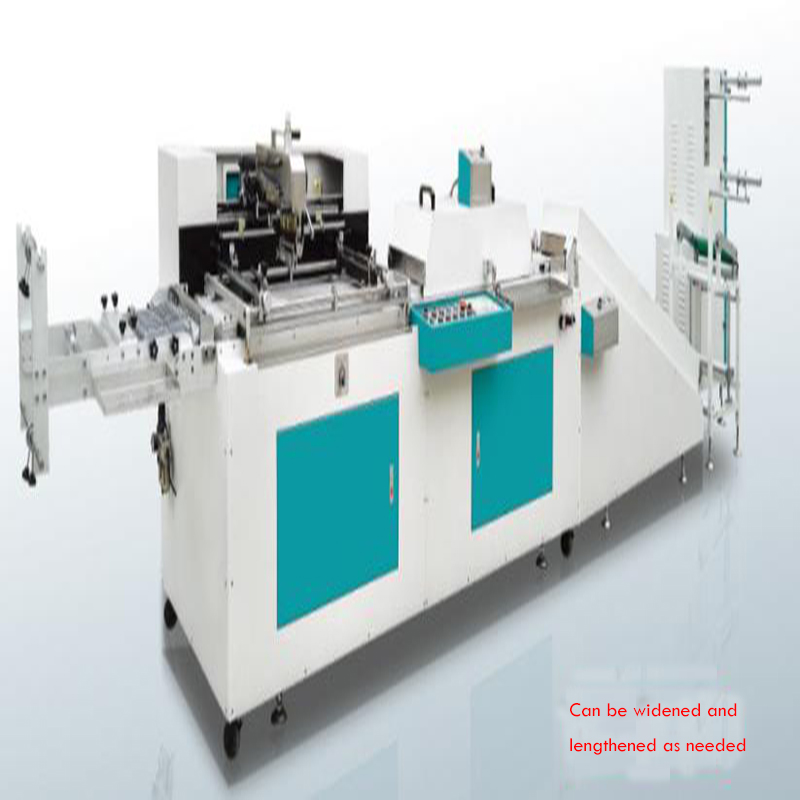

HY-100D Automatic Single Color Screen Printing Machine

Product Advantage

● Full Servo Transmission – Ensures stable operation and precise control during the entire printing process.

● Extended Machine Body – Reduces the number of glue applications on the conveyor belt, improving efficiency.

● Dual Ovens – Fast drying capability, greatly enhancing printing speed and productivity.

● Large Printing Area – High-speed print head running at up to 35 cycles/minute.

● Long Drawstring Capability – Can handle lengths up to 6 meters, suitable for special applications.

● Special Material Adaptability – Effective for thick plates, snow gauze ribbon, and other difficult-to-print substrates.

● Versatility – Handles elastic belts, cotton belts, black belts with white ink, wide non-woven fabrics, and more.

● Precision Double-Sided Printing – Delivers accurate registration for black materials with white letters, pomp, round tape, cotton tape, and film.

Technical Parameters

Product Uses

● Label Ribbons – Brand tags, garment labels, decorative ribbons.

● Elastic Tapes – Waistbands, underwear bands, sportswear elastic bands.

● Non-Woven Fabrics – Wide rolls for packaging, medical, or industrial use.

● Organza & Special Fabrics – Decorative ribbons, gift wrap materials, festive packaging.

● Cotton & Round Tapes – Apparel accessories, craft decorations, industrial tapes.

● Films & Synthetic Materials – Plastic films, synthetic strips, and specialty substrates.

Product Operate Guide

● Power on the system and check servo control settings.

● Load the printing substrate (ribbon, tape, or film) onto the conveyor belt.

● Mount the screen plate with the required design.

● Apply suitable ink onto the screen.

● Start the servo-driven conveyor.

● The print head runs at high speed, transferring ink precisely.

● For double-sided printing, align and pass the material through both print stations.

● Printed materials pass through the dual ovens for rapid drying.

● Ensure temperature and speed are set according to substrate type.

● Collect the printed tapes or ribbons.

● Inspect quality for alignment, color, and ink adhesion.

● Clean ink, screens, and conveyor belt immediately after printing.

● Regularly maintain servo system and oven parts for long-term stability.

FAQ

Q1: What materials can be printed with this machine?

A: It works with elastic tapes, cotton belts, non-woven fabrics, organza, ribbons, films, snow gauze ribbons, round tapes, and more.

Q2: Can it handle double-sided printing?

A: Yes, it is designed for precise double-sided printing, even on black substrates with white ink.

Q3: What is the maximum printing speed?

A: The print head can reach 35 cycles per minute with stable output.

Q4: How long can the printed drawstring be?

A: It can process lengths up to 6 meters, ideal for long-format printing.

Q5: Is the drying process efficient?

A: Yes, with two built-in ovens, the machine provides fast ink curing and high output efficiency.

Q6: Is it suitable for thick or special substrates?

A: Yes, the machine is effective for thick plates, snow gauze ribbons, and other special materials that are difficult to print on standard machines.
