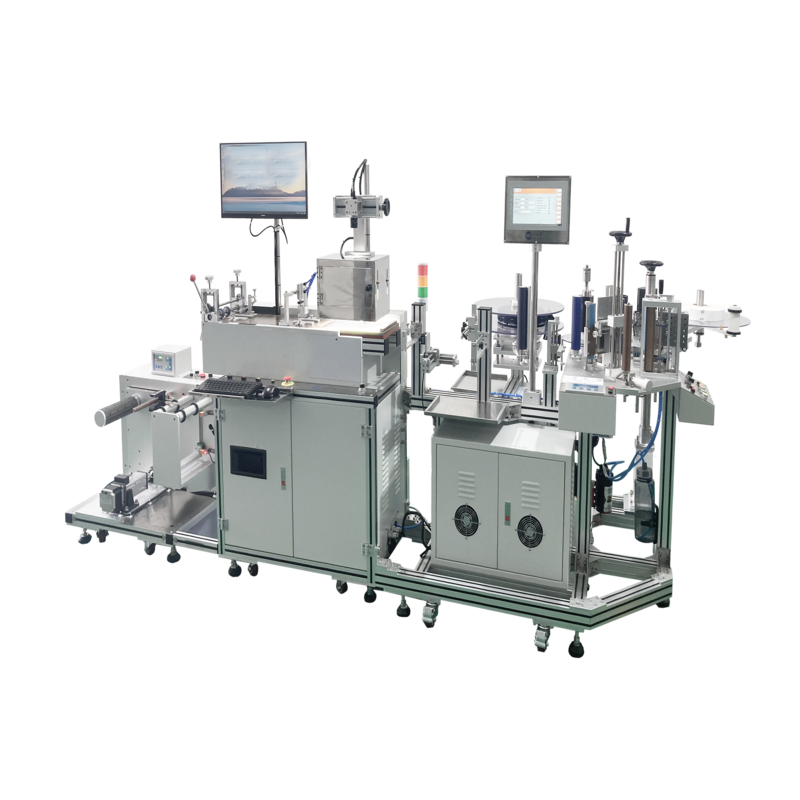

Product Advantage
● Accurate Tag Labeling：Ensures precise positioning of labels on tags, improving product appearance and consistency.
● Integrated Vision Inspection (VIS)：Real-time monitoring of label quality (alignment, printing clarity, defects).Detects missing labels, misaligned labels, or color deviations instantly.
● Bad Label Marking：Automatically marks defective labels, making it easy to separate qualified and unqualified products.
● Rewinding Function：Supports smooth and efficient rewinding of labeled tags into rolls, ready for downstream processes.
Technical Parameters
| Model | HY-168 + VIS |
| Inspection Speed | 200pcs/min |
| Labeling Speed | 20m/min |
| Labeling Accuracy | ±0.5mm |
| Label Width | 10mm-160mm |
| Inlay Width/Length | 28mm-10mm / 10mm-100mm |
| Dimension | 3800L*2000W*1700H(mm) |
| Weight | 320KG |
| Voltage | 220V AC |
| Power | 2.2KW |
| Main Features | Tag labelingRewindVision inspectionBad label marking |
Product Uses
● Garment & Textile Industry：Tag labels for clothing, fashion accessories, shoes, and home textiles.
● Retail & Logistics：Barcode labels, price tags, inventory tags, and shipping tags.
● Packaging Industry：Product information tags and brand tags for boxes, bags, or premium packaging.
● Electronics & Hardware：Identification tags, instruction tags, and serial number tags requiring high accuracy.
● Food & Beverage：Tags for bottles, jars, or premium gift packaging that need visual quality inspection.
Product Operate Guide
● Load the woven label, fabric label, or tag roll onto the feeding rack.
● Set label size, cutting method (heat/cold/ultrasonic), and folding type (center fold, end fold, Manhattan fold, etc.) via the control panel.
● Adjust feeding tension for smooth delivery and calibrate label alignment.
● Run a small batch test to verify cutting accuracy and folding quality.
● Switch to automatic mode for continuous cutting, folding, and collection.
● Finished labels are collected in a box or conveyor for further sewing or packaging.
● Regularly clean the blades and folding units, check sensors and motors to ensure long-term stable operation.
FAQ
Q1: What types of labels can the machine process?
A1: It can handle woven labels, fabric labels, paper tags, and various synthetic materials.
Q2: What cutting methods are available?
A2: The machine supports heat cutting, cold cutting.
Q3: Which folding styles does it support?
A3: It offers multiple folding options, including center fold, end fold and more.
Q4: How fast is the machine?
A4: Depending on the label size and folding type, it can produce several hundred labels per minute, ensuring high efficiency.
Q5: How accurate is the cutting and folding?
A5: The machine delivers high precision and consistency, ensuring all labels remain uniform in mass production.
Q6: Is it fully automatic?
A6: Yes, it is a fully automated system, and it can also be integrated with downstream processes such as sewing or packaging lines.
Q7: What label sizes can it handle?
A7: The machine supports a wide size range, from very small labels to large-format tags, depending on your production needs.
Q8: Is it easy to operate?
A8: Yes, it features a user-friendly control panel. Basic training is sufficient for operators to start production quickly.
Q9: What about maintenance?
A9: Routine cleaning and periodic blade replacement are required. The structure is designed for easy maintenance and long-term stability.
