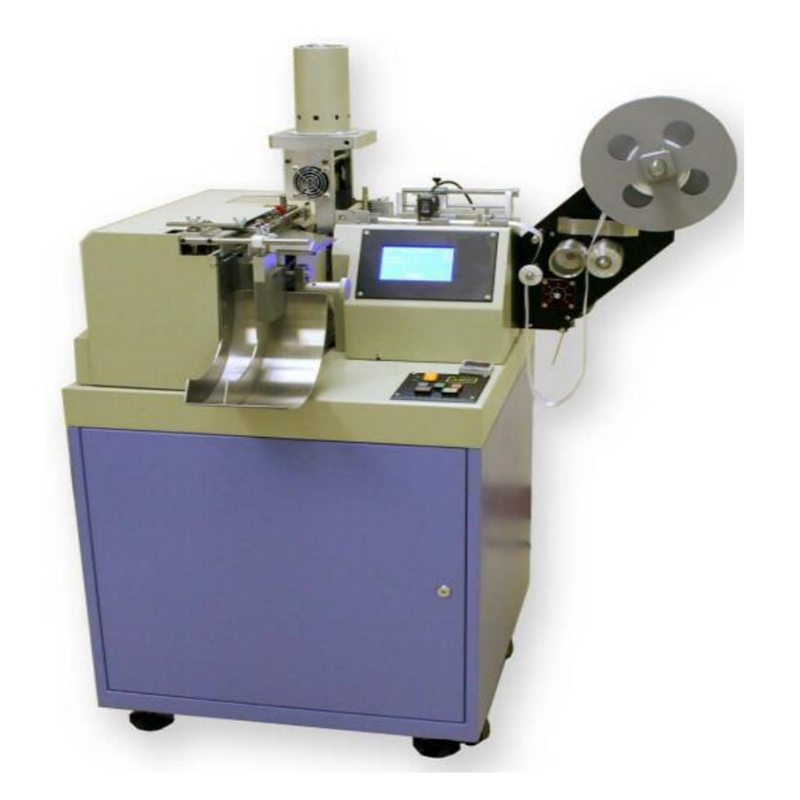

ALF-300S ULTRASONIC LABEL CUTTING AND FOLDING MACHINE

ALF-300S ULTRASONIC LABEL CUTTING AND FOLDING MACHINE

The ALF-300S is an automatic label folding and cutting machine designed for center/loop fold or cut-only operations with ±0.5mm precision.
It features a touch-screen interface, multi-language system, and auto-teach sensor, making it ideal for garment and label manufacturers seeking speed, accuracy, and easy operation.

Quantity:
Availability:





Inquire Add to Basket

Model:
ALF-300S

Product Description

Product Advantage

High precision: Featuring a cutting accuracy of ±0.5mm, this machine delivers exceptionally precise cutting results. The strict tolerance ensures all finished labels stay in perfect alignment, effectively avoiding irregular edges and size deviations to guarantee uniform product quality in every batch.

Fast production: It reaches a maximum output speed of up to 220 pieces per minute. The high working efficiency fully meets the demands of large-batch and continuous mass production, greatly boosting overall productivity and shortening production cycles for your workshop.

Smart operation: Equipped with an intuitive touch-screen operating interface, the machine is simple to learn and operate. Meanwhile, the built-in automatic teach-pattern sensor enables fast parameter setup and position recognition, which saves plenty of time for equipment debugging and daily operation.

Multi-language system: The built-in language system supports English, Chinese and German. It caters to operators from different regions and eliminates language barriers, making the machine user-friendly for global production teams and overseas workshops.

Flexible application: It comes with multiple working modes to meet diverse production needs, including center fold, loop fold and cut-only options. You can freely switch between different processing styles according to various label design and production requirements.

Technical Parameters

Label Width	12mm-50mm
Label Length	40mm-260mm
Output Capacity	Up to 220pcs/min
Fold Length	20-130mm(or cut only)
Dimension	82(L)110(W)135(H)cm
Accuracy	±0.5mm
Net Weight Ultrasonic Power Power	230KG 30KHZ,600W 220VAC 1000W

Product Uses

This professional folding and cutting machine is specially developed for label processing, and it is widely applied in multiple industrial scenarios. It works perfectly for garment and textile label production lines, and is an ideal processing device for all kinds of apparel tag manufacturers. Besides, it is also well-suited for factories that produce woven labels, satin labels and printed care labels, covering most common label processing demands in the textile and apparel industry.

Product Operate Guide

Load the complete label roll onto the designated roller steadily, then set your target label length and select the required fold type on the control panel in advance.
Activate the auto-teach sensor, and let it automatically detect and identify the pre-set cutting marks on the label materials to ensure accurate positioning.
Fine-tune the folding length and running speed flexibly through the touch screen based on actual production standards and material conditions.
Start the automatic folding and cutting process with one click. You can monitor the real-time working status, operating data and production progress on the screen throughout the whole process.

FAQ

Q1: Can it cut both woven and satin labels?
A: Yes, it works with a wide range of materials including woven, satin, and printed labels.

Q2: Does it require frequent calibration?
A: No, the auto-teach sensor automatically adjusts cutting positions for consistent accuracy.

Q3: How difficult is it to change fold type?
A: Very easy — fold type and parameters can be switched in minutes via the touch screen.

Q4: Is maintenance complicated?
A: Routine cleaning and blade inspection are enough; the system is designed for easy maintenance.
