Product Advantage
1. Ultrasonic Center Fold Cutting Technology
The HY-838 / HY-838L uses advanced ultrasonic center fold label cutting technology, allowing simultaneous folding and cutting without burning edges. Compared with traditional hot knife systems, ultrasonic cutting provides smooth sealing, no fraying, and consistent folding position.

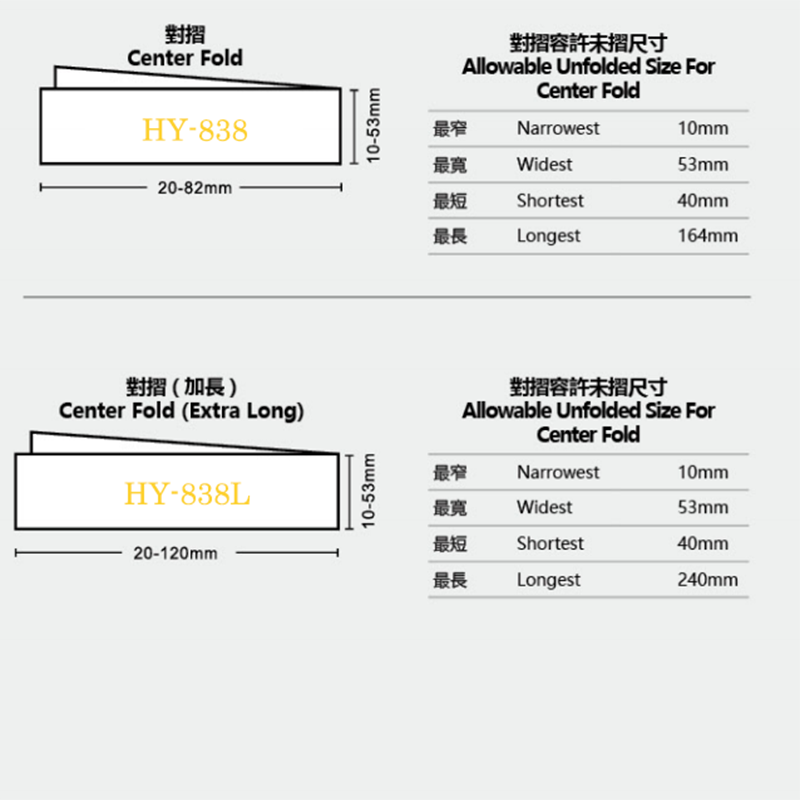

It supports both center fold and center fold extra long, making it ideal for long labels, brand tags, and care labels.
2. Fully Numerical Control System
The machine is equipped with a fully numerical control system, allowing operators to set label length, folding position, and ultrasonic power directly from the panel. No mechanical adjustment is required, reducing setup time by up to 30%.
The user-friendly interface ensures stable performance even for new operators.
3. Roller Feeding System for High Stability
The roller feeding system ensures smooth and accurate label feeding, preventing slipping and misalignment. This structure improves cutting accuracy and keeps the folding position consistent during high-speed production.
It is especially suitable for printed labels requiring precise pattern alignment.
4. Multi-Function Label Processing
The HY-838 series supports multiple functions in one machine:Center fold,Center fold (extra long),Piece cut,Pressing line on labels,Regular waste removal,Electrostatic feedback control.
These features make the machine suitable for different types of labels without changing equipment.
5. Quiet Operation & Industrial Durability
The ultrasonic system reduces noise and vibration compared with mechanical cutting machines.
With a reinforced frame and high-quality components, the HY-838 / HY-838L supports long-time continuous production and is widely used in garment accessory factories, label manufacturers, and packaging industries.
Technical Parameters
| Speed | 0-200pcs/min
|
Dimension
| 1120L*800W*1460H(mm)
|
Weight
| 180KG
|
Voltage
| 220V AC
|
| Power | 0.75KW
|
Product Uses
Suitable for brand labels, size labels, and care labels requiring center fold cutting with clean edges. Ultrasonic sealing prevents fraying and improves product quality.
Printed Label & Satin Label Cutting
Ideal for printed polyester labels and satin labels that need accurate pattern positioning. The roller feeding system ensures precise alignment.
Long Label & Special Tag Production
The HY-838L supports extra long center fold, making it perfect for long garment tags, industrial tags, and special packaging labels.
High-Efficiency Industrial Production
With automatic waste removal and digital control, the machine is suitable for factories requiring stable output and continuous operation.
Product Operate Guide
Install the label roll on the feeding holder.
Set label length and folding position on the digital control panel.
Adjust ultrasonic power according to label material.
Select center fold, extra long fold, or piece cut mode.
Start the machine for automatic feeding, folding, and cutting.
FAQ
Q1: What is the difference between HY-838 and HY-838L?
HY-838L supports extra-long center fold labels, while HY-838 is designed for standard label sizes. Both models share the same digital control and ultrasonic cutting system.
Q2: What materials can be processed?
Suitable for satin labels, woven labels, nylon tape, polyester labels, printed labels, and other textile tags.
Q3: Is the folding position adjustable?
Yes. The folding position can be set through the digital control panel, ensuring accurate and consistent center folding.
Q4: Does the machine require frequent maintenance?
No. The ultrasonic system reduces mechanical wear, and the machine is designed for long-term industrial use with minimal maintenance.
Q5: Do you provide installation support?
Yes. We provide operation videos, PDF manuals, and remote technical support to help customers install and use the machine easily.
