Product Advantage

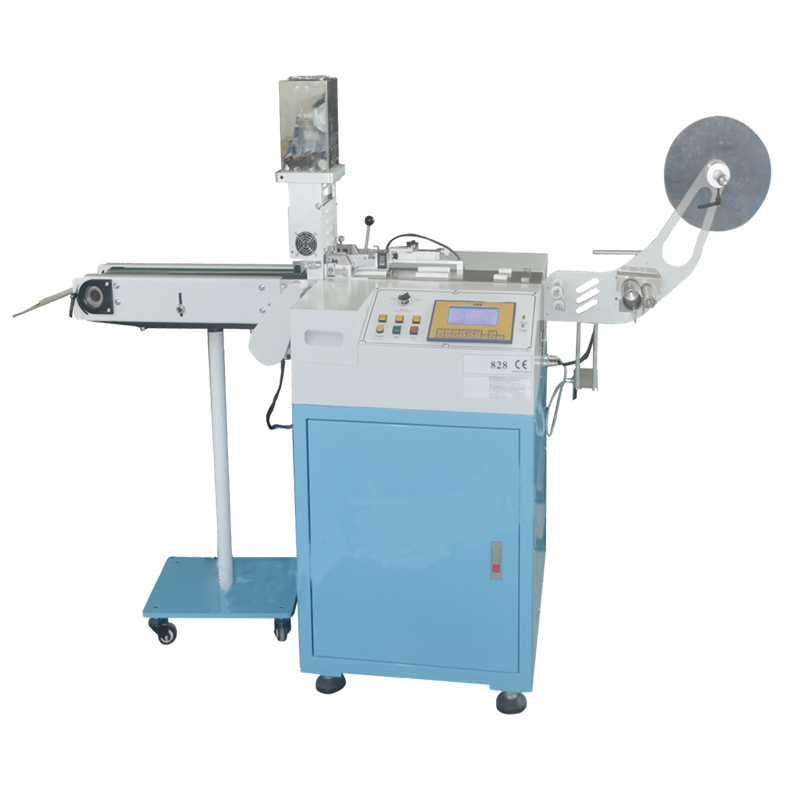

High Precision Ultrasonic Label Cutting Technology The HY-828 adopts advanced ultrasonic printed label cutting technology, ensuring smooth sealing edges without fraying or burning. Compared with traditional hot knife cutting, ultrasonic cutting provides better edge quality and longer blade life.The cutting length accuracy can reach ±0.5mm, making it suitable for high-quality garment labels, woven labels, and printed labels production.
Digital Control System for Easy Operation.The machine is equipped with a digital control system for label length and cutter pressure adjustment, allowing users to set parameters directly from the control panel.No mechanical tools are required for adjustment, reducing setup time and improving efficiency. The user-friendly interface makes the machine easy to operate even for new workers.
Ultrasonic Cut + Cold Cut Optional
It supports both ultrasonic cutting and optional cold cutting, allowing users to select the suitable cutting method according to label material.Ultrasonic cutting is ideal for synthetic materials, while cold cutting is suitable for paper labels or special materials that do not require sealing.
Automatic Waste Removal & Label Marking Function
The machine has regular waste label removal, pressing line on labels, and label marking functions.These features reduce manual work and improve production efficiency. Electrostatic feedback elimination helps prevent labels from sticking during cutting, ensuring smooth feeding and stable output.
Stable Structure for Continuous Production
The HY-828 is built with an industrial-grade frame and stable feeding system, allowing long-time continuous operation.The machine is widely used in label factories, garment accessory factories, and packaging companies requiring reliable and consistent production performance.
Technical Parameters
Speed
| 0-600pcs/min
|
Dimension
| 2020L*670W*1420H(mm)
|
Weight
| 130KG |
Voltage
| 220V AC
|
Power
| 0.75KW
|
Product Uses
Garment & Textile Label Cutting
Suitable for printed labels, satin labels, woven labels, and care labels. Ultrasonic cutting prevents edge fraying and improves product appearance.
Packaging & Branding Labels
Ideal for decorative labels, brand tags, and custom printed labels that require accurate length cutting and clean edges.
Industrial Tag & Special Labels
Can be used for safety labels, technical fabric tags, and special function labels requiring pressing lines or marking.
Multi-Material Label Production
With ultrasonic cut and cold cut options, the machine can process polyester, nylon, satin, paper labels, and mixed materials.
Product Operate Guide
Place the label roll on the feeding holder.
Set the cutting length on the digital control panel.
Select ultrasonic cut or cold cut mode.
Adjust cutter pressure and speed if needed.
Start the machine for automatic feeding and cutting.
FAQ
Q1: What is the difference between ultrasonic cut and cold cut?
Ultrasonic cutting seals the edge while cutting, preventing fraying. Cold cutting is suitable for paper or materials that do not need sealing.
Q2: Can the cutting length be adjusted easily?
Yes. The digital control system allows precise length setting directly on the panel without tools.
Q3: What materials can the HY-828 cut?
It can cut polyester labels, satin labels, woven labels, nylon tape, printed labels, and paper labels.
Q4: Does the machine support automatic waste removal?
Yes. The machine has a regular waste removal system to improve efficiency and reduce manual work.
Q5: Is technical support available?
Yes. We provide user manuals, operation videos, and remote technical support to help customers install and operate the machine.
