Technical Parameters

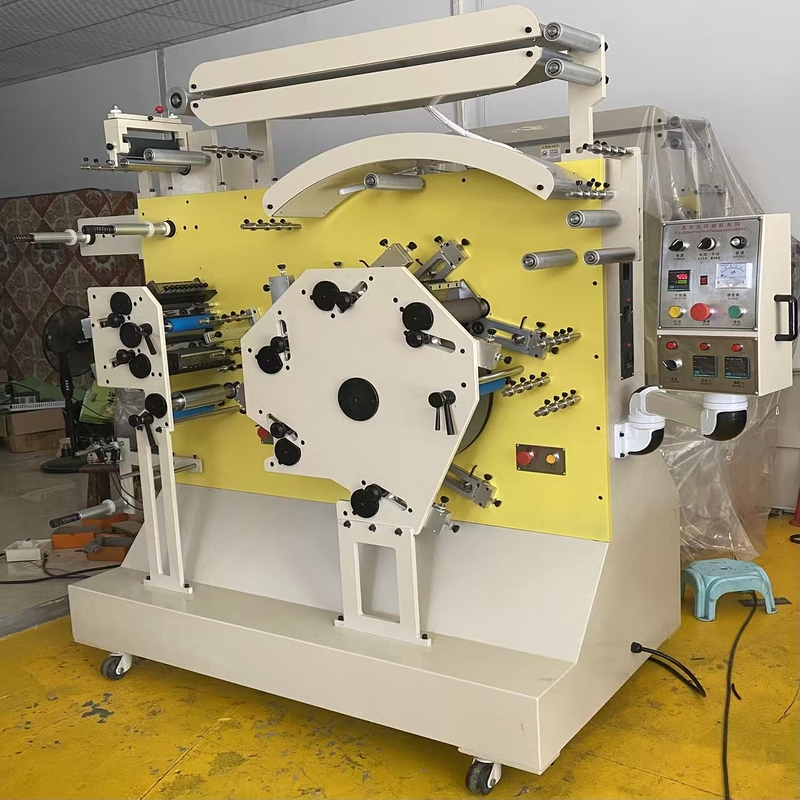

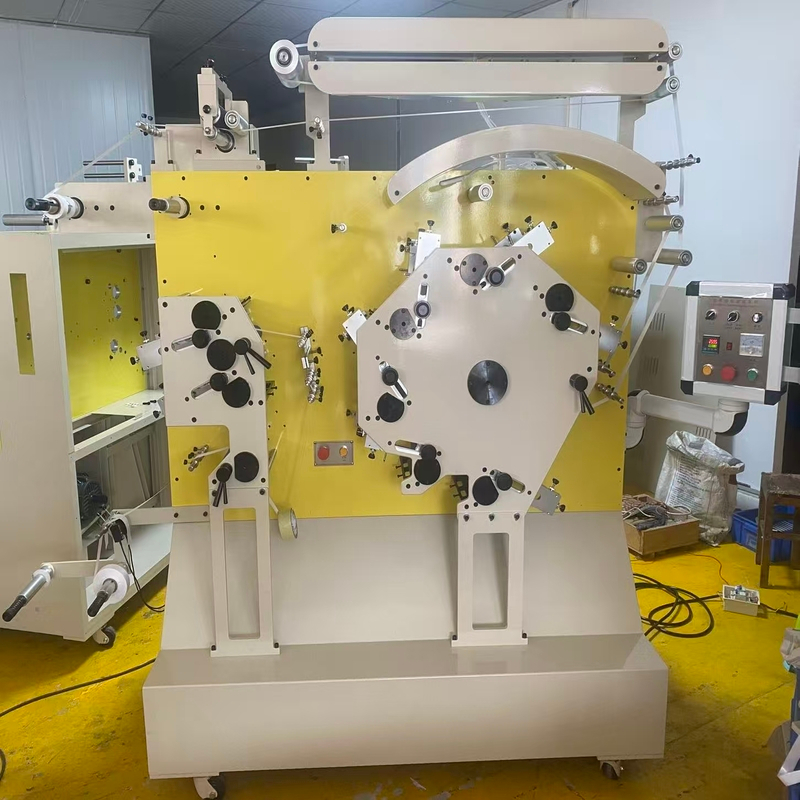

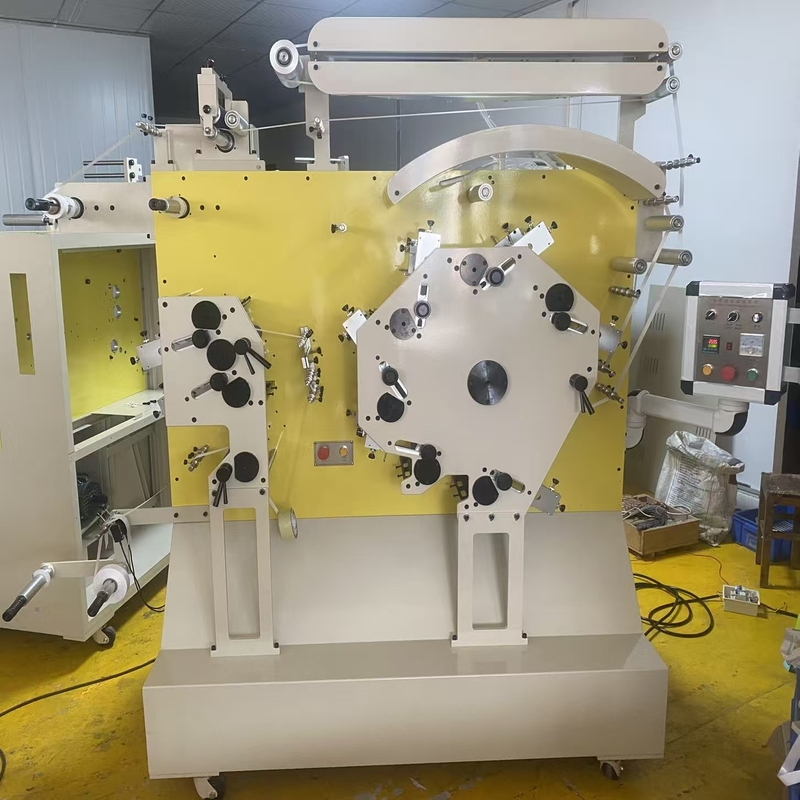

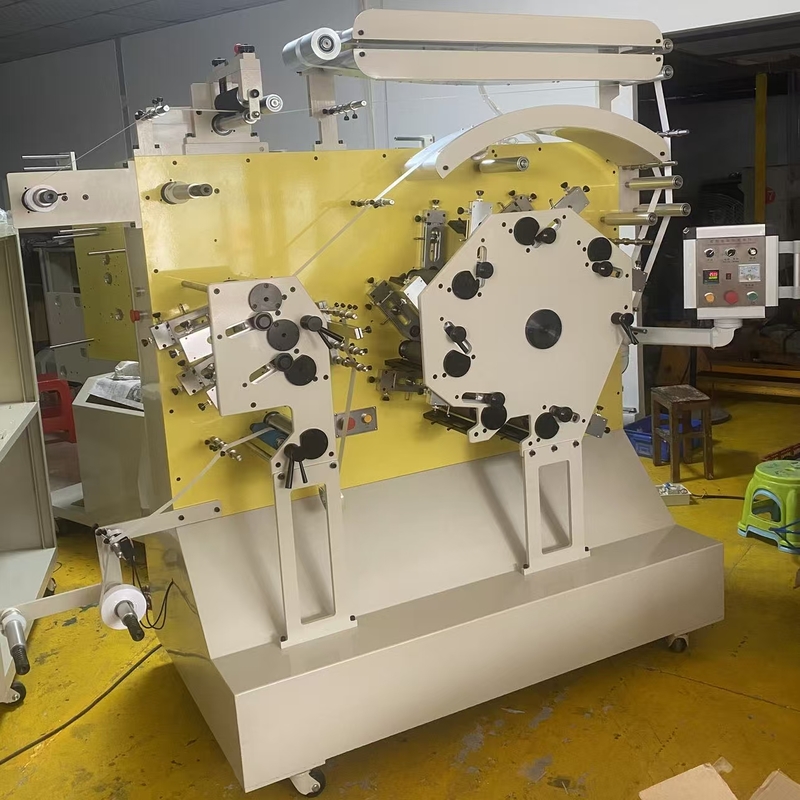

The HY6002 Flexographic High Speed Label Printing Machine is engineered for continuous, high-volume production cycles. Operating at a steady, rhythmic hum, this equipment transforms raw flexible substrates into vividly printed labels at a consistent speed of 60m/min. The physical framework is constructed from heavy-duty cast iron and precision-machined steel, providing a vibration-free foundation that ensures absolute stability during rapid color application. Weighing 600KG, the unit remains firmly anchored, eliminating microscopic shifts that could compromise print registration. Facility managers will appreciate the optimized 1700*850*1800 dimension, which maximizes floor space utilization while maintaining full accessibility to all mechanical touchpoints. Powered by a standard AC 220V supply, it integrates efficiently into existing manufacturing infrastructures. Every component aligns with strict international safety and quality standards, including CE and ISO certifications, guaranteeing a secure operational environment. The advanced printing color configuration of up to 6C+2C allows operators to execute complex gradient designs and crisp micro-text with absolute clarity, supporting a maximum printing width of 150mm across a versatile printing area of 108-401mm.
Model | HY6002 |
Printing Color | 6C+2C |
Printing area | 108-401mm |
Maximum printing width | 150mm |
Speed | 60m/min |
Power | AC 220V |
Dimension | 1700*850*1800 |
Weight | 600KG |
As a central asset for commercial label manufacturing, the HY6002 Flexographic High Speed Label Printing Machine redefines production efficiency and output consistency. This advanced flexographic printing system is designed to handle the rigorous demands of multi-shift operations, delivering a tangible return on investment through reduced material waste and accelerated job changeovers. When the machine is running, operators can observe the smooth, synchronized rotation of the printing cylinders, applying layers of ink with microscopic precision. The resulting label printing exhibits exceptional visual depth, sharp edge definition, and a smooth, tactile finish that elevates brand perception. Whether executing high-volume runs of standard packaging stickers or specialized short-batch custom tags, this system maintains exact color fidelity from the first meter to the last. By accommodating a broad spectrum of eco-friendly water-based inks and UV-curable formulations, it empowers manufacturers to meet diverse client specifications while adhering to environmental compliance. The integrated drying unit and optional oven drying process further lock in pigments, creating a permanent bond that resists fading, moisture, and mechanical abrasion.
At the core of this machine lies an industrial-grade anilox roller system paired with a highly accurate 6+2 multi-color registration mechanism. As the substrate passes through the printing stations, the micro-engraved cells of the high-precision anilox rollers transfer an exact volume of ink to the flexo plates. This controlled application prevents pooling or starving, resulting in vibrant, saturated hues and crisp micro-typography. The mechanical synchronization ensures zero deviation between color layers, allowing operators to achieve high-fidelity reproduction of complex gradients and intricate brand logos without misregistration, optimizing production efficiency for professional-grade label printing.
Freshly printed labels require immediate and thorough curing to prevent smudging during rewinding. The integrated drying unit streamlines processing by rapidly setting the ink surface. For applications demanding extreme resilience, the optional 3–8 hour oven drying chemically cross-links the pigments to the substrate, significantly enhancing colorfastness. The finished labels possess a distinctively smooth texture and emit no residual solvent odors. Prints resist fading, washing, and wear, making the machine ideal for applications requiring long-lasting labels and tapes in harsh environments.
To maximize daily output and minimize downtime between unique orders, the system is engineered with a quick-release cylinder mechanism. Printing length can be easily modified by replacing the cylinder, allowing seamless adaptation to diverse order specifications. This mechanical flexibility drastically reduces setup times for order changeovers, transforming short-run custom jobs into highly profitable ventures. Maintaining a steady output speed, this flexibility supports both small-batch custom projects and high-volume production without compromising efficiency or print quality.
Managing flexible substrates at high speeds requires intelligent mechanical intervention. This model integrates an automated web guiding and tension control system that continuously monitors and adjusts the material path. By preventing lateral shifting and maintaining optimal tautness, it virtually eliminates material wrinkling and registration errors. With simple setup, intuitive operation, and minimal maintenance requirements, the machine reduces training time and labor costs. Its accessible design ensures manufacturers maintain high productivity while minimizing downtime and operational expenses.
The equipment excels in manufacturing adhesive labels, tamper-evident seals, and flexible packaging films. In the fast-paced consumer goods sector, product packaging requires labels that instantly capture attention with bright, flawless graphics. This machine delivers exactly that, producing stickers and tags with a premium glossy or matte finish that feels sophisticated to the touch, meeting the precision and durability needs of consumer goods packaging.
Beyond aesthetics, it is highly capable of printing heavy-duty caution tapes, industrial brand markings, and decorative packaging ribbons. The precise ink laydown ensures that critical safety information and barcodes remain highly legible, providing vibrant and long-lasting prints for brand identification and safety applications.
In the garment sector, labels must endure punishing conditions, including hot water washes, chemical dry cleaning, and constant friction against the skin. This flexographic press is perfectly calibrated for printing on satin ribbons, nylon taffeta, and woven edge tapes. To meet diverse apparel requirements, the machine efficiently produces:
Wash-care tags requiring extreme fade resistance and legibility.
Woven brand insignias for premium apparel lines and designer garments.
Satin ribbons for decorative retail packaging and gifting.
Nylon taffeta labels for heavy-duty workwear and outdoor gear.
High-contrast barcode labels supporting strict inventory tracking.
The soft, pliable feel of the printed fabric ensures maximum comfort for the end consumer, ensuring prints withstand repeated washing and wear in the apparel industry while supporting efficient inventory management and supply chain operations.
The system boasts extensive substrate compatibility, effortlessly handling adhesive paper, synthetic films, tapes, ribbons, woven labels, and other flexible label substrates commonly used in industrial label production. Furthermore, it is fully optimized to run both eco-friendly water-based inks and rapid-curing UV inks, allowing adaptation to specific environmental regulations and finish requirements.
How is the printing length adjusted for different custom orders?
Operators can alter the print length by physically changing the plate cylinder. The machine's modular design allows for swift cylinder removal and installation, allowing quick adaptation to different label sizes and order requirements with minimal production delays.
What mechanisms ensure the colorfastness of the finished labels?
Color durability is achieved through precise ink application followed by immediate processing in the integrated drying unit. After printing, tapes can be dried in an oven for a specified period. This heat-setting process permanently binds the pigment to the substrate fibers, which significantly improves resistance to washing, rubbing, and fading for long-lasting print quality.
What is the learning curve for operators new to this equipment?
Despite its advanced capabilities, the press is engineered with an intuitive, logical control interface. The automated tension control and web guiding systems handle the most complex aspects of material feeding. Yes, the machine is designed for simple operation and requires only basic training, making it accessible for operators with varying levels of experience.
What global technical support and maintenance services are provided?
We deliver a comprehensive, full-lifecycle support package. We provide comprehensive after-sales service including operation manuals, training videos, spare parts, and a one-year warranty, with customized service options available to meet specific business needs and keep your production line running without interruption.
