Product Advantage
1. Unique Four-Head Synchronous Cutting Technology – Achieves up to 4× the productivity of traditional equipment while maintaining superior cutting quality.
2. Wide Application Range – Delivers smooth, clean cutting surfaces across diverse materials, from cardboard and corrugated board to high-density polymer foams.
3. Intelligent Operating System – User-friendly and adaptive, automatically optimizes cutting parameters for different materials, ensuring cutting accuracy within ±0.1 mm.

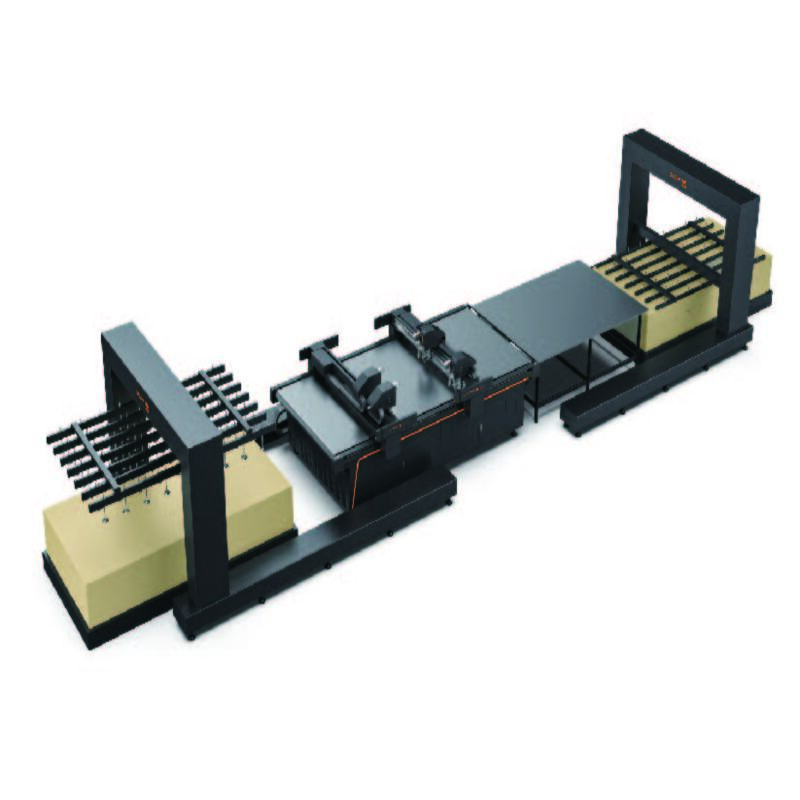

4. Versatile Production Capability – Suitable for both mass production lines and small-scale custom processing. When paired with a fully automatic feeder, it supports up to 500 sheets per load (300 g/m² cardboard) and guarantees 24/7 continuous production.
5. Cutting Thickness – Standard range: 0–60 mm; customizable up to 100 mm.
6. Cutting Speed – Linear cutting speed up to 1,800 mm/s.

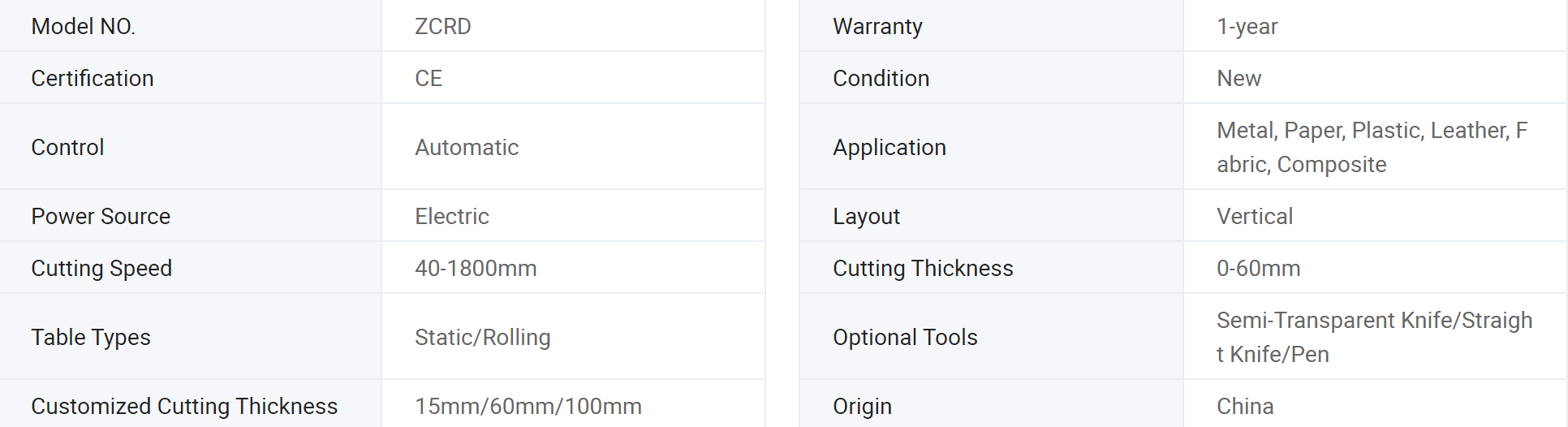

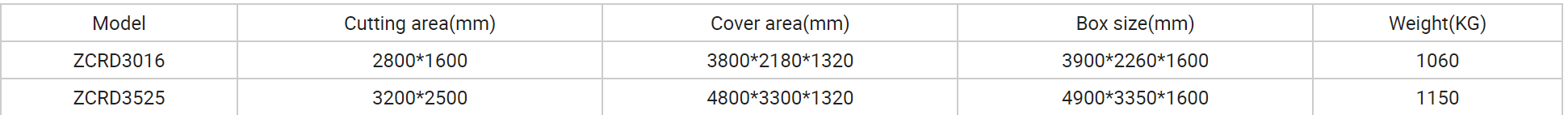

Technical Parameters
Product Uses
Widely applied in the advertising, packaging, and composite materials industries, the ZCRC Series supports versatile processing across a wide range of substrates, including paper, corrugated board, honeycomb board, solid board, and synthetic sheet materials such as PVC, EPE foam, EVA foam, and silicone foam.

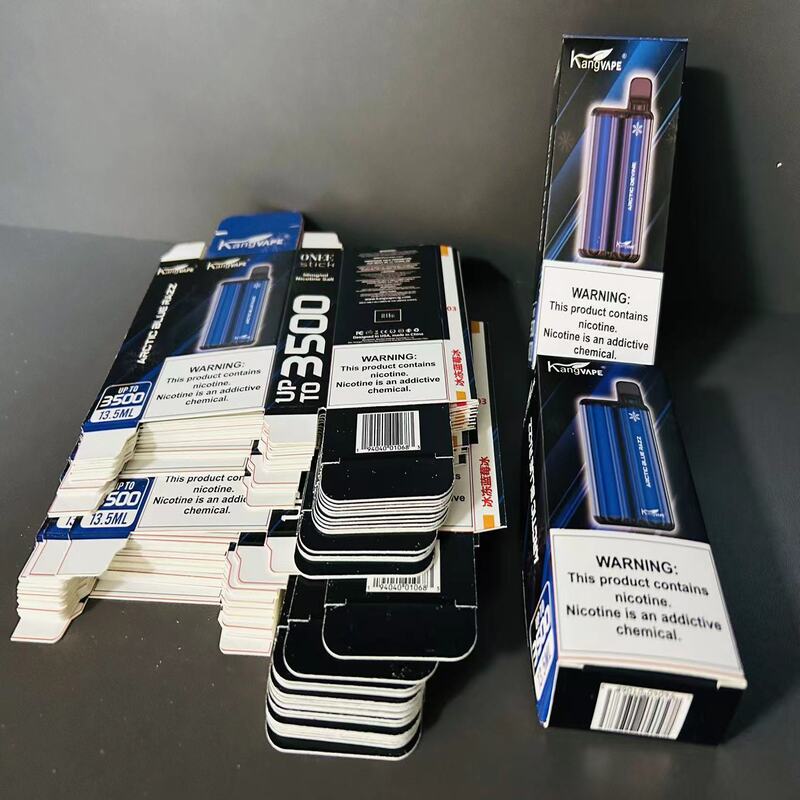

①Packaging Materials & Prototyping / Small-Batch Production
Heavy-duty triple-wall corrugated board (3A)
Laminated industrial grey board
Honeycomb board cutting + V-grooving
EVA foam cutting + engraving
Pearl cotton cutting + engraving
②Advertising Industry Applications
KT board, Chevron board, corrugated board cutting + creasing
PP board, acrylic cutting + engraving
③Rubber & Foam Industry Applications
Polycarbonate material cutting
Rubber gaskets and washers cutting + precision engraving of 1 mm micro holes
Silicone foam cutting
Product Operate Guide

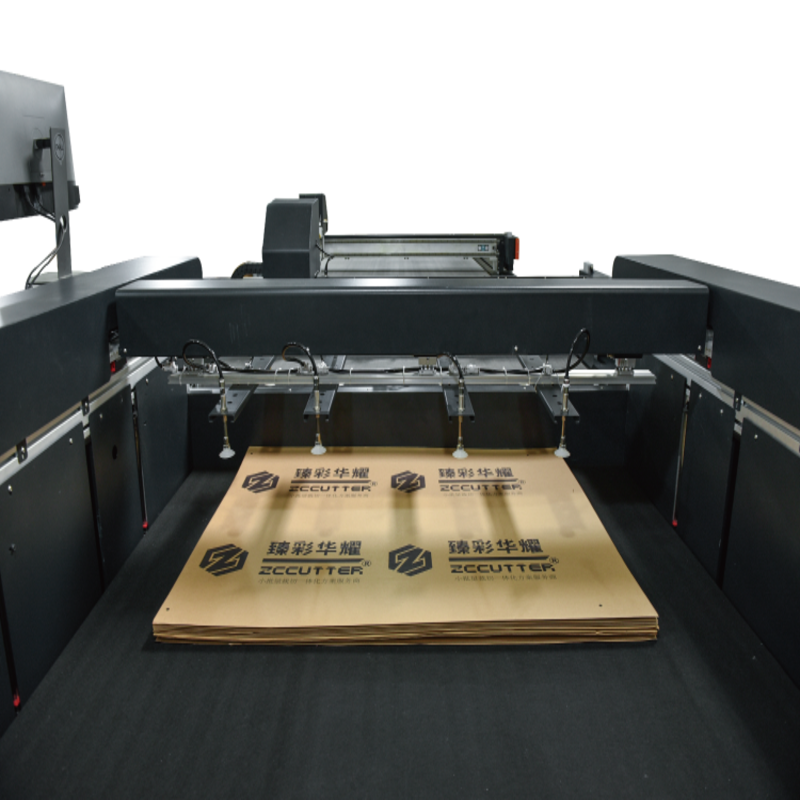

To ensure the best user experience, the oscillating knife cutting machine is designed with a simple, step-by-step workflow. Users only need to upload the cutting file, place the material on the vacuum table, and start the intelligent feeding system. The machine will automatically complete precise cutting and deliver finished products to the collection area. For detailed instructions and safety tips, please contact technician.
①Preparing the machine
②Loading material
③Importing design files
④Starting the cutting process
⑤Safety & maintenance tips
FAQ
1. Q: How can I pay my order?
A: We accept T/T,L/C,Western Union.
2. Q: Do you have any export cases?
A: Yes,we do. For example, one of our Ukraine packaging clients improved their sample-making speed from days to hours, while a Canadian automotive supplier uses our machine to achieve ±0.05mm accuracy in leather cutting. These export cases demonstrate the reliability and adaptability of our machines.
3. Q: How many types of boxes are programmed in our software?
A: More than 200 types.
4. Q: Can your machine cut internal shapes, holes, or patterns, not just the outer contour?
A: Yes. It is capable of precisely cutting holes, slots, or internal designs on corrugated materials, including printed sheets. The intelligent feeding system ensures accurate positioning, while the high-precision cutting head guarantees clean edges and millimeter-level accuracy.
