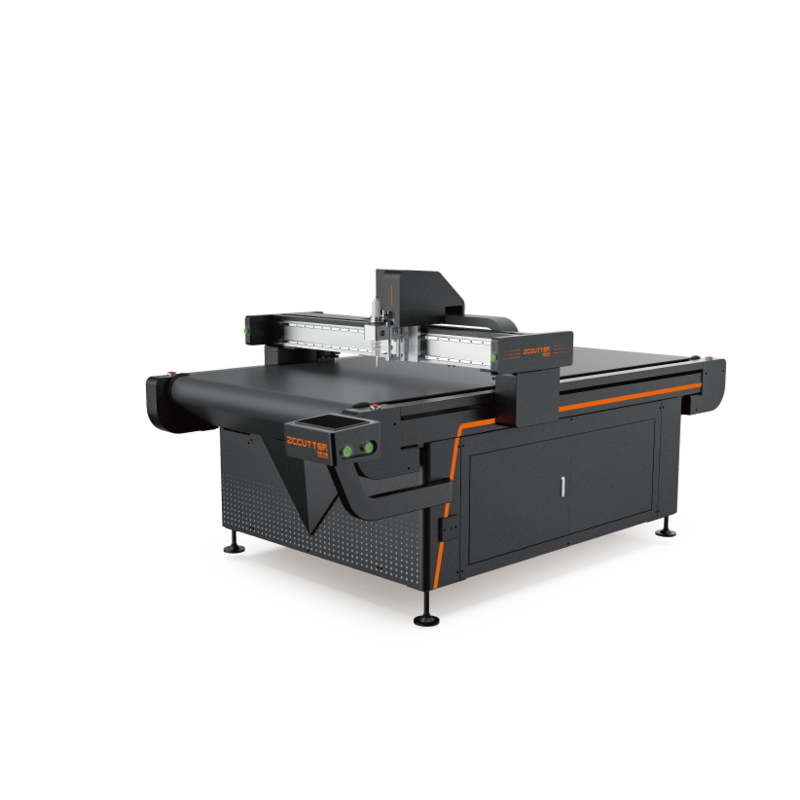

ZCRA

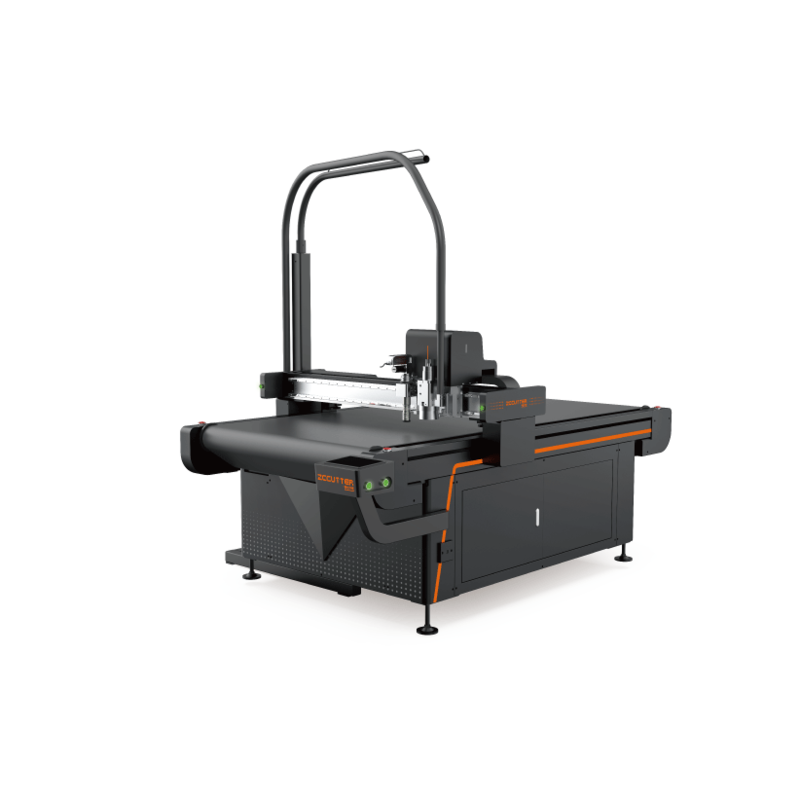

The ZCCUTTER ZCRA Series die-cutting sample machine utilizes an advanced pure physical oscillating knife process to perform cutting, kiss-cutting, and creasing in one continuous operation. Engineered for exacting standards, it achieves a remarkable accuracy of ±0.03mm. Unlike thermal alternatives, this mechanical approach guarantees smooth, clean edges with absolutely no burning or thermal distortion. The tactile finish of the cut materials remains perfectly intact, meeting the strictest aesthetic and functional requirements for premium packaging.
Transitioning from concept to physical sample has never been faster. Equipped with a 10-minute fast-response system, prototyping cycles are dramatically shortened—performing up to 100 times faster than traditional manual methods. By introducing a completely die-free processing workflow, this machine eliminates the prohibitive costs and lengthy lead times associated with conventional mold manufacturing. This agile approach significantly reduces material waste and boosts overall return on investment.
Designed with highly intuitive, user-friendly controls, the ZCCUTTER sample machine drastically reduces employee training costs. The system boasts a comprehensive software ecosystem that smoothly connects with mainstream design platforms. Operators can effortlessly import files in various formats—including DXF, AI, PDF, and PLT—with a single click. This zero-delay conversion from digital blueprint to active cutting path ensures fluid daily operations.
Capable of processing a vast array of flexible materials and intricate geometric shapes, it meets diverse prototyping demands across multiple sectors. To secure materials during intense operation, the machine features a smart multi-zone vacuum suction table. This powerful technology firmly locks down flexible substrates, completely preventing any physical shifting during high-speed routing. Furthermore, the platform supports modular upgrades, allowing facilities to add CCD vision positioning systems or multi-tool combinations to expand future capabilities.

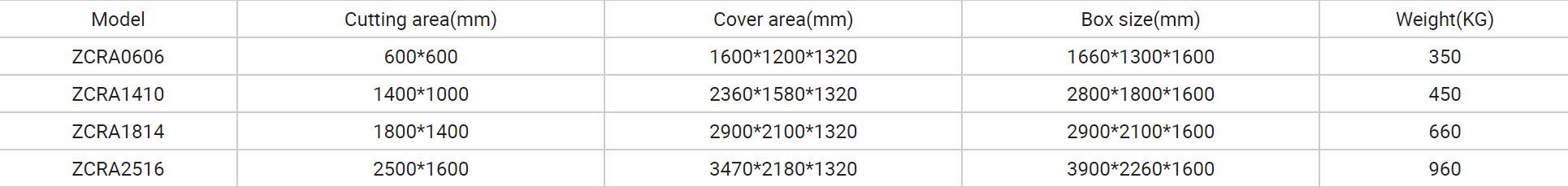

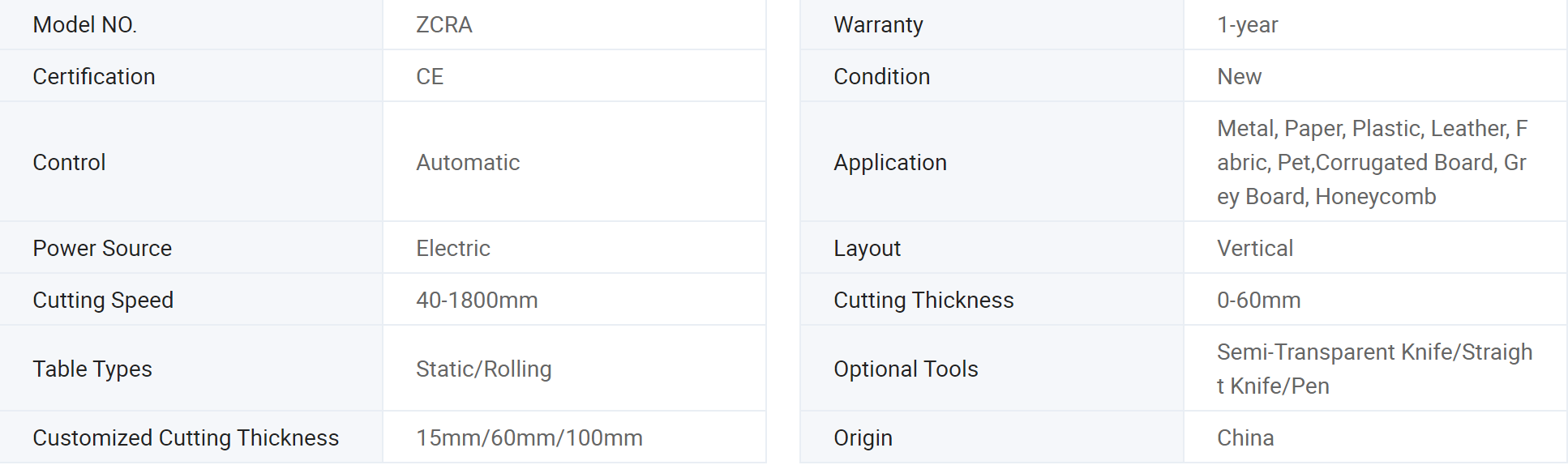

Beneath the sleek exterior of the ZCRA Series lies a formidable core hardware architecture designed for relentless, heavy-duty operation. The machine is driven by industrial-grade servo motors paired with high-precision linear guide rails. This sophisticated transmission system guarantees exceptionally stable performance and an extended operational lifespan, even under the stress of continuous production schedules. The rigid frame absorbs operational vibrations, ensuring that every micro-movement translates into flawless cuts. Below are the detailed technical specifications and dimensional data that define the operational limits of the equipment.
Engineered to handle rigid corrugated board, dense honeycomb cardboard, standard paper boxes, cartons, and lightweight foam boards. The machine effortlessly slices through thick, fibrous structures without crushing the internal fluting, ensuring structural integrity and crisp fold lines for retail displays.

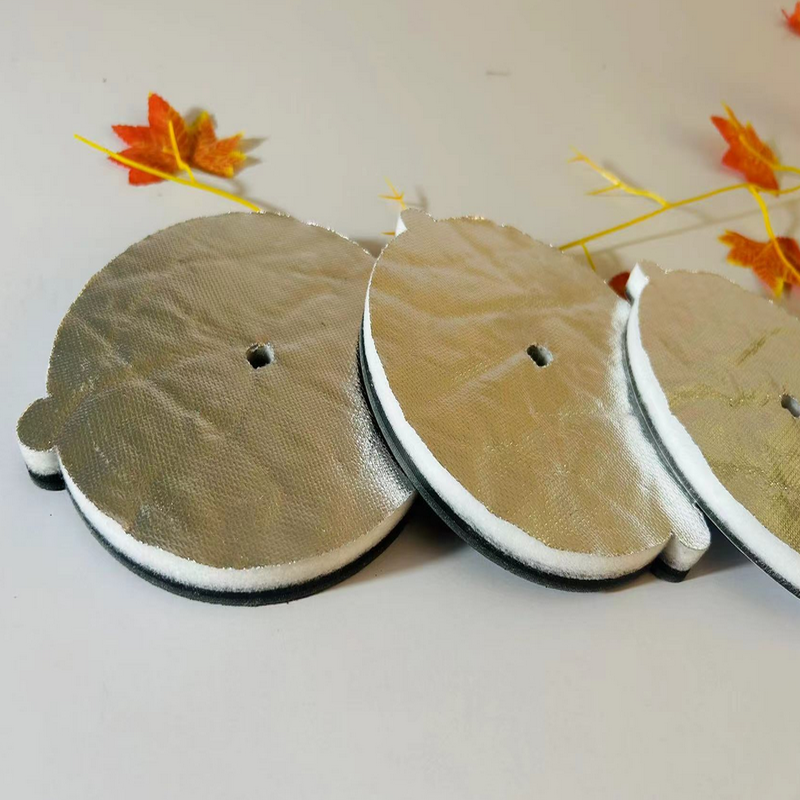

Perfectly suited for processing genuine leather, synthetic hides, heavy-duty carpets, acoustic insulation pads, and advanced composite materials. The oscillating blade glides through tough automotive textiles, leaving a clean, unfrayed edge that meets the exacting tactile standards required for vehicle cabins.
Ideal for cutting woven fabrics, synthetic leather, dense felt, furniture upholstery, and specialized technical textiles. The vacuum table holds delicate fabrics firmly in place, eliminating the puckering typically experienced during manual cutting, resulting in perfectly matched panels for assembly.
Expertly processes PVC boards, KT boards, acrylic substitutes, and various foam panels used in visual merchandising. The precise depth control allows for flawless kiss-cutting of adhesive vinyls and clean through-cuts on rigid substrates, delivering sharp signage with ready-to-mount edges.

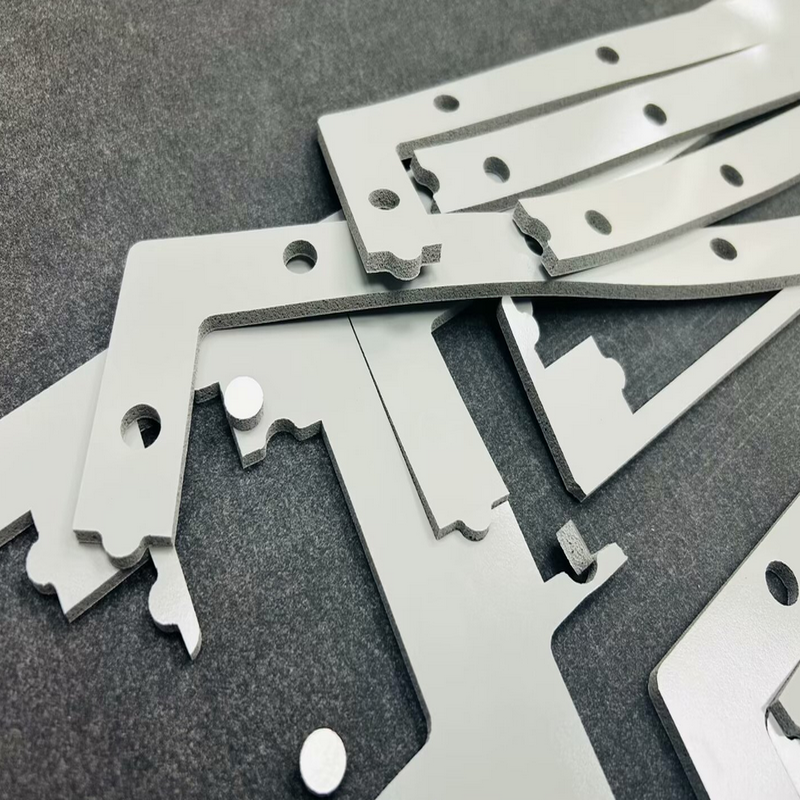

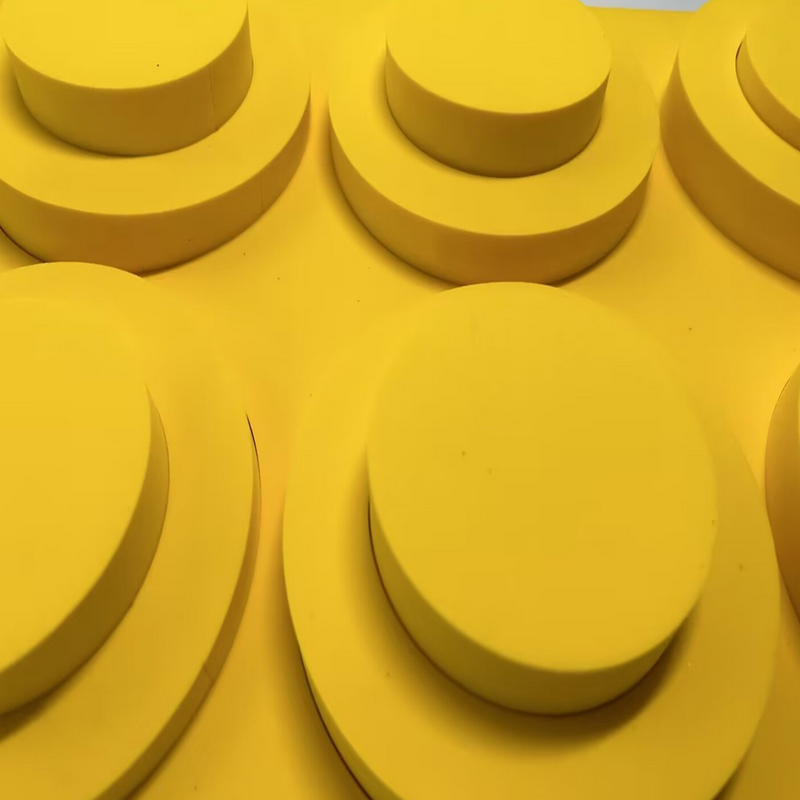

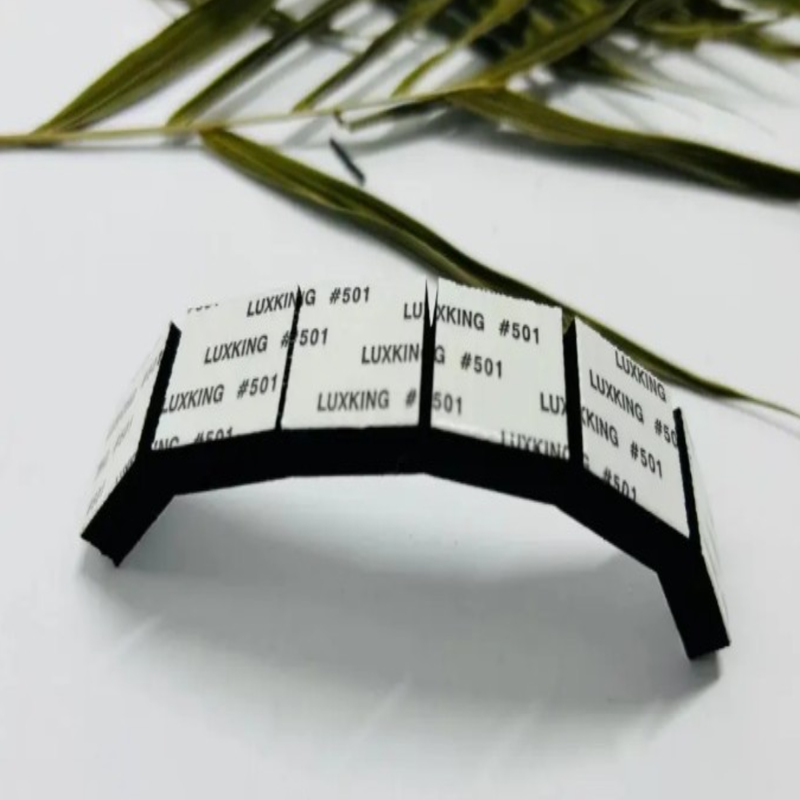

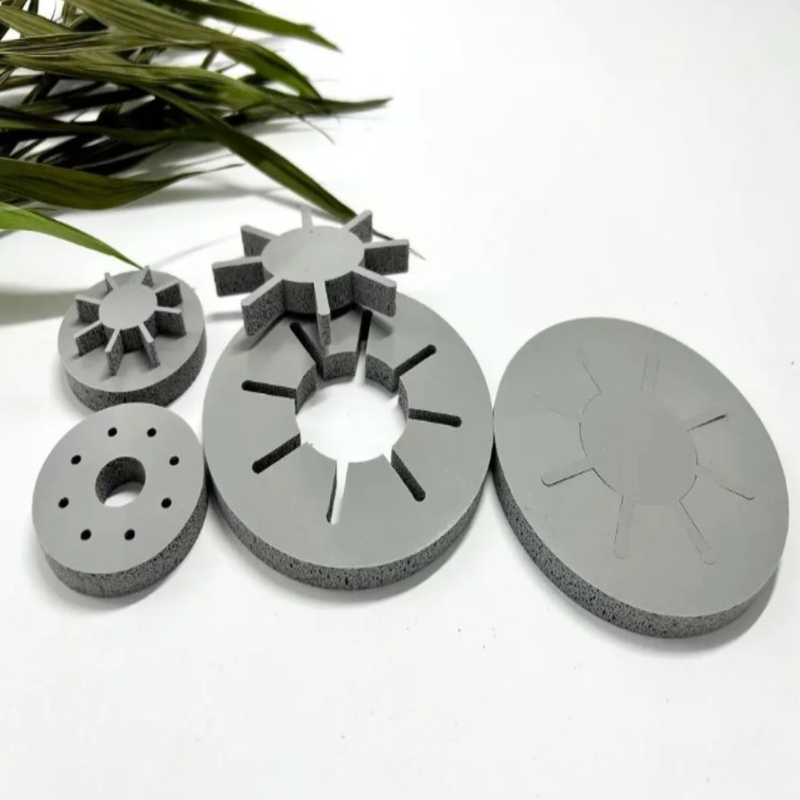

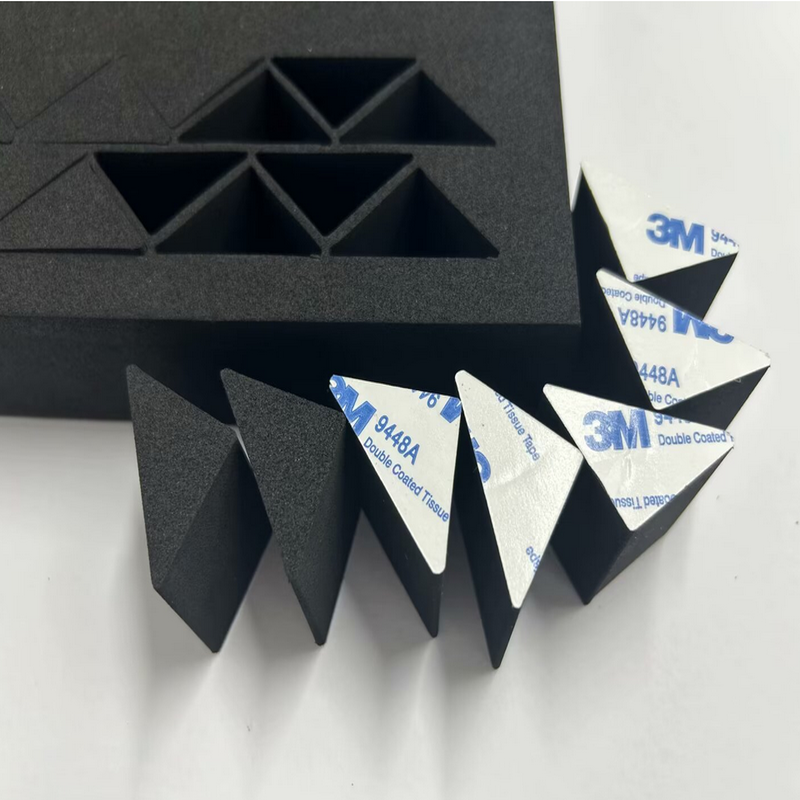

Capable of machining tough industrial materials including glass fiber, carbon fiber prepregs, vulcanized rubber, silicone sheets, and technical foams with high precision. The heavy-duty cutting head powers through abrasive composites without excessive wear, providing a reliable solution for advanced manufacturing.
To ensure the best user experience and maximize daily output, the oscillating knife cutting machine is designed with a highly intuitive, step-by-step workflow. Users only need to upload their digital cutting file, place the raw material onto the multi-zone vacuum table, and initiate the intelligent feeding system. The machine will automatically execute the precise cutting path and deliver the finished, flawlessly edged products to the collection area. This streamlined process minimizes human error. For detailed technical instructions and comprehensive safety tips, please contact our dedicated technician team.
Preparing the machine: Conduct a quick visual inspection, ensure the cutting area is clear, and power on the industrial servo motors to initialize the system for daily operation.
Loading material: Position the substrate onto the workbed and activate the smart multi-zone vacuum suction to firmly lock the material in place, preventing any physical shifting.
Importing design files: Utilize the compatible software ecosystem to import your DXF, AI, PDF, or PLT files with a single click, enjoying immediate, zero-delay conversion.
Starting the cutting process: Engage the automated cycle. The pure physical oscillating knife will execute cuts, kiss-cuts, and creases with unwavering ±0.03mm accuracy.
Safety & maintenance tips: Keep the linear guide rails lubricated and regularly inspect the cutting blades to maintain the machine's extended lifespan and high-precision output.
1. Q: How can I pay my order?
A: We offer flexible financial arrangements to suit your procurement protocols. We accept T/T, L/C, and Western Union. Our financial team works closely with purchasing departments to ensure transparent transactions that align with your organizational requirements.
2. Q: Do you have any export cases?
A: Yes, we do. Our equipment is trusted globally. For example, one of our Ukraine packaging clients improved their sample-making speed from days to hours, fundamentally transforming their operational efficiency. Additionally, a Canadian automotive supplier uses our machine to achieve strict ±0.05mm accuracy in complex leather cutting. These export cases clearly demonstrate the exceptional reliability and adaptability of our machines in demanding international markets.
3. Q: How many types of boxes are programmed in our software?
A: Our comprehensive software ecosystem comes pre-loaded with more than 200 types of standardized box templates. This extensive library allows operators to instantly select, resize, and process common packaging designs without needing to draft new blueprints from scratch, drastically accelerating turnaround times.
4. Q: Can your machine cut internal shapes, holes, or patterns, not just the outer contour?
A: Yes. It is fully capable of precisely cutting intricate internal holes, narrow slots, or complex internal designs on corrugated materials, including pre-printed sheets. The intelligent feeding system ensures absolute accurate positioning, while the high-precision cutting head guarantees clean, uncrushed edges and millimeter-level accuracy. Whether you require delicate patterns or functional mounting holes, the machine delivers flawless execution.
 |  |  |
 |  |  |
