Specialized for 100mm foam, EPE, and other flexible materials, the machine adapts to multiple demanding applications including automotive interiors (seat foam, acoustic sound insulation), commercial furniture (sofa cushions, memory foam pillow fillings), and protective packaging (custom EPE protective pads). By supporting rapid interchangeability among electric oscillating knives, pneumatic tools, and V-cut modules, a single workstation can execute cutting, creasing, and slotting on complex composite materials. It delivers high-precision irregular cutting with ease, maintaining a strict positioning accuracy of ≤0.03mm. The resulting physical edges are clean, smooth, and entirely free from the burnt odors or thermal distortion typical of laser alternatives.
Two tool heads can work synchronously or independently, doubling productivity compared with traditional single-knife machines. For example, 100 foam pieces can be cut within 2 hours, ensuring rapid turnaround for urgent orders. This completely die-free process eliminates the heavy financial and time investments required for physical mold manufacturing, making it the ultimate solution for short-run, multi-variety custom production. With the proprietary intelligent nesting system, material utilization improves by up to 25%, especially for bulk EPE packaging processing. This drastic reduction in scrap material translates directly into an accelerated return on investment (ROI) for manufacturing facilities.
The system supports direct import of DXF/AI/PDF/PLT files with a simple one-click start, integrating fluidly into existing industrial design workflows via Gigabit Ethernet data transmission. Even operators with no prior technical experience can quickly get started through the intuitive PLC touch screen interface. The advanced six-axis linkage system provides real-time path compensation, completing complex contours (such as wave or step shapes) in one pass, significantly reducing manual rework.
Constructed with premium-grade servo motors and rigid linear guides, the transmission system guarantees industrial-level stability and an extended operational lifespan even under continuous heavy-duty cycles. To secure lightweight and easily deformed materials, the machine is equipped with a high-power, multi-zone intelligent vacuum adsorption platform. This ensures the substrate remains perfectly flat and locked in place without any micro-shifting during rapid tool movements. Additionally, an optional CCD industrial camera can be integrated for ultra-precise edge-patrol routing (achieving tolerances down to ±0.02mm), catering specifically to printed graphics and non-standard custom production lines.

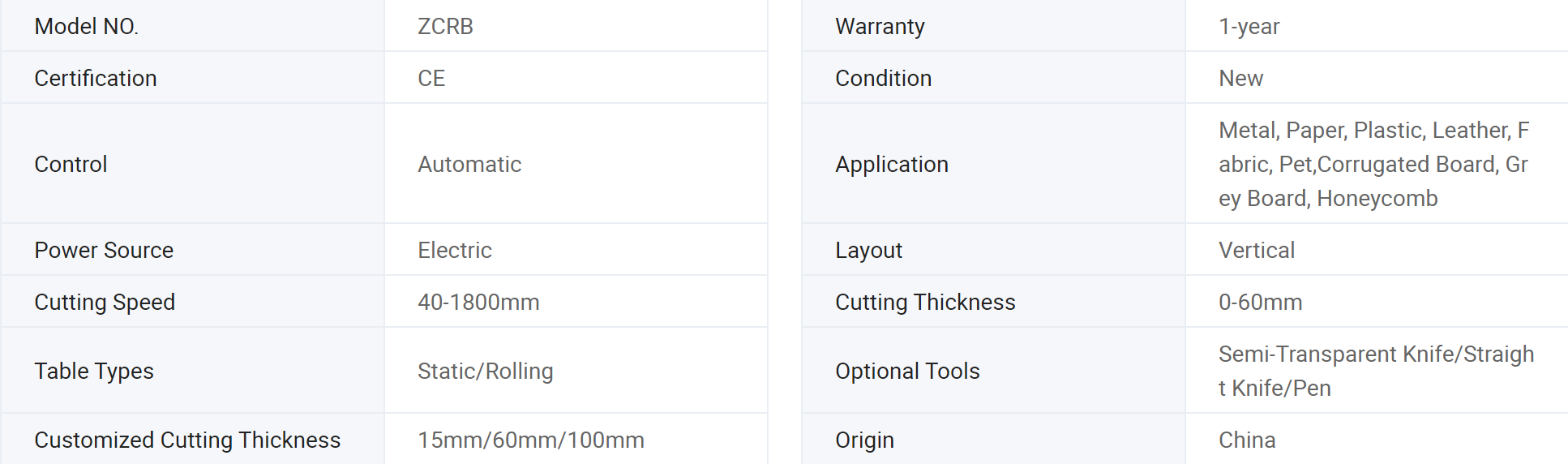

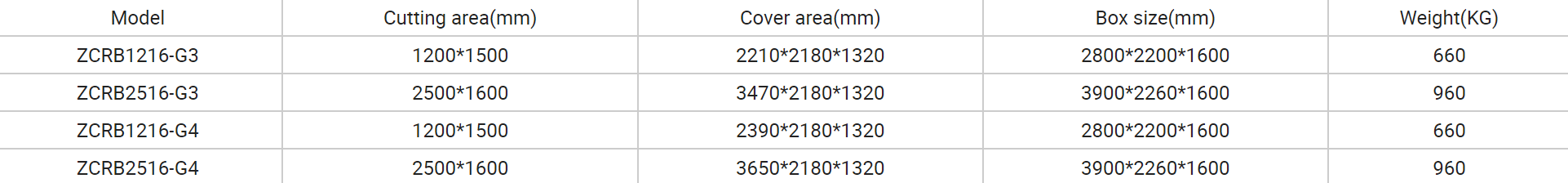

The ZCRB Dual Blades High Precision Automatic Digital Cutting Machine is engineered with rigorous industrial specifications to handle continuous commercial production. The technical data outlined in the charts below details the machine's operational footprint, electrical requirements, and precise mechanical capabilities. From the robust structural dimensions to the specific voltage configurations and maximum cutting velocities, every parameter is designed to provide maximum reliability on the factory floor. Operators can rely on these exact specifications to plan floor space, integrate power supplies, and calculate production output accurately.
This automated digital cutting system is specifically calibrated to process 100mm foam, EPE, sponge, and other flexible materials with absolute precision. By eliminating physical dies, it serves a wide array of demanding industrial sectors that require exact tolerances and clean finishes.
Automotive Interiors: Precision cutting of seat foam and acoustic sound insulation panels, ensuring exact fitment for vehicle assembly lines.
Upholstered Furniture: Rapid contouring of complex geometries for sofa cushions, memory foam pillow fillers, and ergonomic seating components.
Protective Packaging: High-speed processing of EPE protective pads, custom shipping inserts, and shock-absorbing materials for fragile electronics.
Thermal & Acoustic Insulation: Shaping thick sponge materials and technical foams used in architectural acoustics and industrial temperature control.
Whether handling dense automotive foam or lightweight EPE, the machine leaves a pristine, uncompressed edge, ensuring the final product is immediately ready for assembly or shipment without secondary finishing.
To ensure the best user experience, the oscillating knife cutting machine is designed with a simple, step-by-step workflow. Users only need to upload the cutting file, place the material on the vacuum table, and start the intelligent feeding system. The machine will automatically complete precise cutting and deliver finished products to the collection area. For detailed instructions and safety tips, please contact our dedicated technician.
① Preparing the machine: Verify that the correct tool modules (such as the oscillating knife or V-cutter) are securely mounted. Ensure the linear guides are clear of debris and the servo motors are initialized via the PLC control panel.
② Loading material: Position the 100mm foam or EPE onto the workbed. Activate the multi-zone intelligent vacuum adsorption system to firmly lock the flexible material in place, preventing any shifting during the high-speed routing process.
③ Importing design files: Transfer your digital blueprints directly into the system. The software seamlessly reads standard industrial formats including DXF, AI, PDF, and PLT, automatically preparing the optimal cutting path.
④ Starting the cutting process: Initiate the cycle with a one-click start. The dual-blade system will engage, utilizing real-time path compensation to execute intricate internal shapes and outer contours simultaneously.
⑤ Safety & maintenance tips: Regularly inspect the blade sharpness and clear the vacuum pores of any foam dust. Keep hands clear of the active cutting zone, relying on the automated intelligent feeding system to advance materials safely.
1. Q: How can I pay my order?
A: We accept T/T, L/C, and Western Union. Our financial team ensures secure and transparent transactions to facilitate smooth international procurement for your manufacturing facility.
2. Q: Do you have any export cases?
A: Yes, we do. For example, one of our Ukraine packaging clients improved their sample-making speed from days to hours, drastically reducing their time-to-market. Meanwhile, a Canadian automotive supplier uses our machine to achieve ±0.05mm accuracy in leather cutting, meeting strict OEM standards. These export cases demonstrate the reliability, rapid ROI, and adaptability of our machines across diverse global markets.
3. Q: How many types of boxes are programmed in our software?
A: More than 200 types. This extensive built-in digital library allows operators to instantly select and modify standard packaging templates, eliminating the need to draft common box structures from scratch and significantly accelerating the production prep phase.
4. Q: Can your machine cut internal shapes, holes, or patterns, not just the outer contour?
A: Yes. It is capable of precisely cutting holes, slots, or internal designs on corrugated materials, including printed sheets. The intelligent feeding system ensures accurate positioning, while the high-precision cutting head guarantees clean edges and millimeter-level accuracy without tearing or compressing the substrate.
