ALC-103A

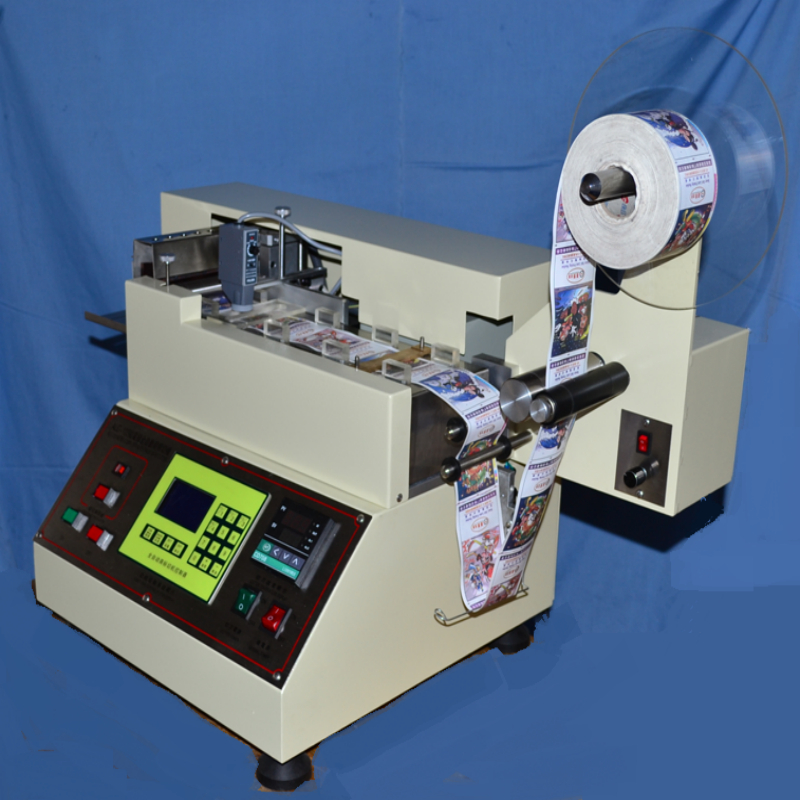

The ALC-103A Fully Automatic Label Hot and Cold Cutting Machine is engineered to transform your label processing workflow, bringing unprecedented accuracy and speed to your production floor. Designed specifically for facilities handling high volumes of garment tags, woven labels, and branding materials, this equipment bridges the gap between raw printed rolls and perfectly finished individual labels. When operating, the machine feeds material with a smooth, rhythmic precision, delivering crisp, fray-free edges on woven labels and smooth, sealed finishes on delicate satin ribbons. By replacing manual sorting and inconsistent hand-cutting with a fully automated, digitally controlled process, operations can drastically reduce material waste and lower overall labor expenditures. The intuitive design ensures that operators of any skill level can quickly master the system, making it an immediate contributor to your daily output.
The ALC-103A integrates advanced mechanical design with intelligent software to optimize your production line. Every component is carefully selected to maximize uptime, ensure consistent output, and provide a superior user experience.
Cold cut or Hot cut: Adapt instantly to different material requirements. The hot cut function melts and seals the edges of satin and woven labels to prevent fraying, while the cold cut delivers a clean, natural slice for PVC and adhesive materials.

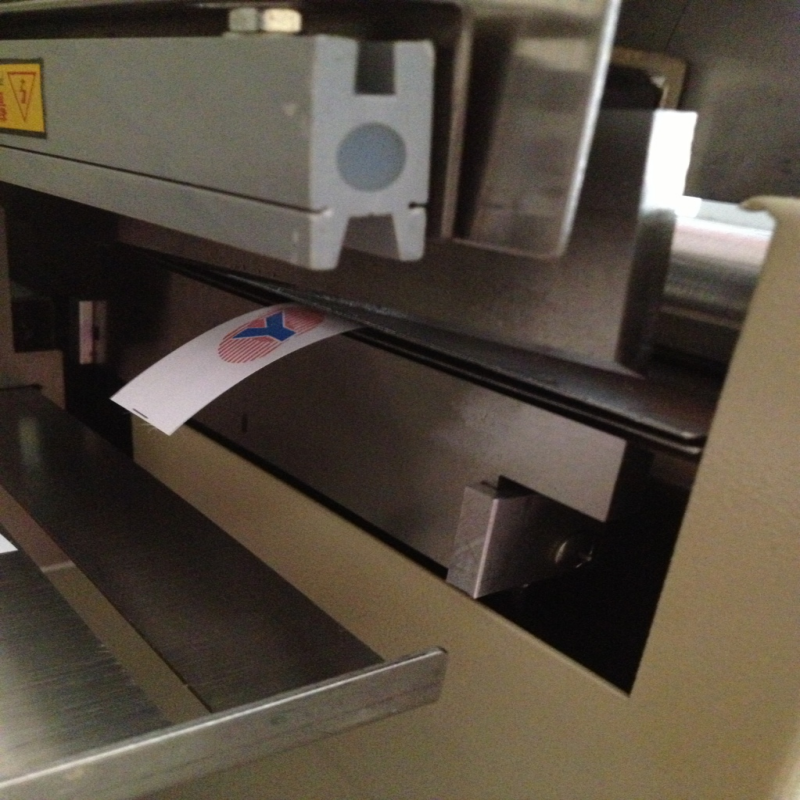

Lubrication free bearings, and durable cutting blade: The heavy-duty blade slices through thick materials with a satisfying, clean snap. Combined with self-lubricating mechanics, the system guarantees long-lasting sharpness and reduces the need for frequent mechanical interventions.
100 % microprocessor control: Experience absolute accuracy in every cycle. The digital brain of the machine ensures that length and speed parameters are strictly maintained without deviation.
Intelligent sensor to eliminate false label cutting: Utilizing a highly sensitive photoelectric eye, the machine identifies label boundaries with pinpoint accuracy, completely eradicating material waste and misaligned cuts.
High throughput, 1,200 labels per hour: Achieve rapid processing for complex operations, scaling up to incredible speeds for smaller labels, which drastically lowers labor costs per unit.
Easy setup and maintenance free: Designed for immediate deployment. Operators can transition between different label batches with minimal downtime and physical effort.

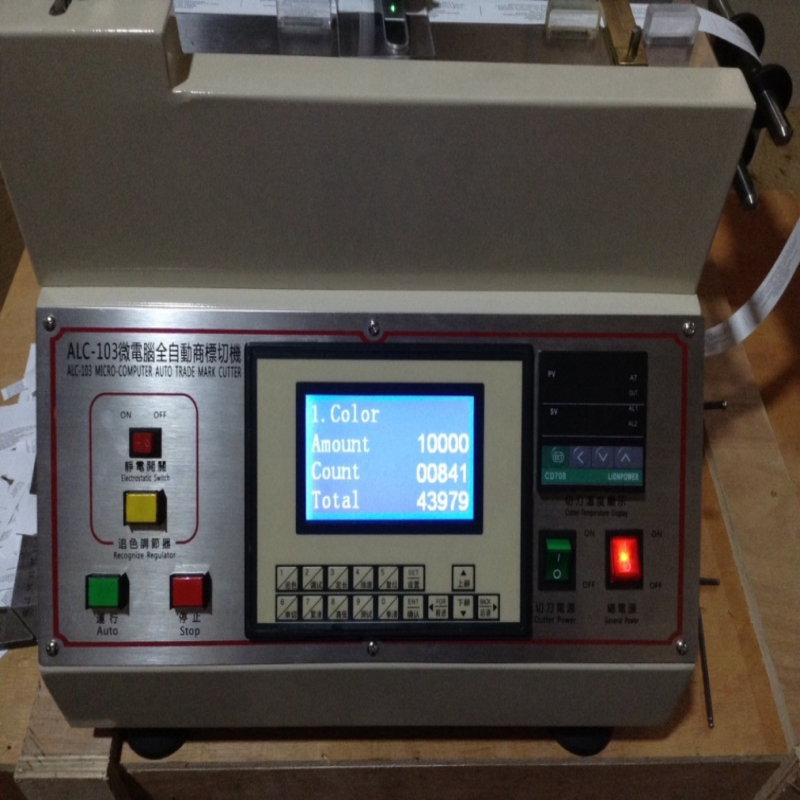

Multilingual menu driven user interface: A digital, one-click setup panel breaks down language barriers, making training straightforward and minimizing operator errors.
built-in anti-static system: As labels are sliced at high speeds, static electricity can cause them to cling and scatter. This integrated system neutralizes static instantly, allowing finished labels to fall and stack in perfectly aligned, neat piles without requiring manual sorting.
Understanding the exact technical parameters of your equipment is crucial for planning efficient production runs. The ALC-103A is engineered to accommodate a wide spectrum of label dimensions—ranging from 1mm to 110mm in width—while maintaining a highly compact physical footprint that saves valuable floor space. With a strict accuracy tolerance of ±0.5mm, every single cut aligns perfectly with your design specifications, ensuring that the final product presents a professional and uniform appearance. Review the precise operational metrics below to see how seamlessly this machine integrates into your facility's daily requirements.
Label Width | 1mm-110mm |
Label Length | 1mm-999mm |
Output Capacity | 500pcs/min(40mm labelcutting) |
Dimension | 850(W)*450(L)*600(H)cm |
Accuracy | ±0.5mm |
Weight | 60KG |
AC Power | 220VAC50-60HZ |
The versatility of the ALC-103A makes it an indispensable asset across various textile, apparel, and packaging sectors. From boutique clothing manufacturers requiring soft-touch care labels to industrial packaging plants utilizing heavy-duty adhesive tags, this machine adapts effortlessly to diverse environments. The ability to switch between hot melting and cold slicing means a single machine performs multiple roles, optimizing your equipment investment and saving valuable workspace. By automating the most labor-intensive parts of label preparation, facilities can redirect their workforce to more complex tasks, thereby boosting overall operational efficiency.
Built on years of specialized industry expertise and a rigorous quality control framework, this cutting machine is designed for continuous, heavy-duty production cycles. The meticulous construction ensures that internal mechanisms remain protected from dust and fabric lint. The integration of self-lubricating mechanisms and wear-resistant materials means the system operates quietly and reliably, shift after shift. You experience fewer interruptions, negligible maintenance requirements, and a consistent output that protects your brand's reputation for excellence. Every unit undergoes strict performance testing before deployment, guaranteeing that it operates exactly as specified from the moment it is powered on, delivering a rapid return on investment.
