Utilizing an advanced, high-precision anilox roller ink transmission system, the HY3002 ensures exact color registration and an exceptionally uniform ink layer. This meticulous fluid control produces industrial-grade, exquisite print quality with rich, vivid details that elevate brand perception and meet the strictest visual standards.
Breaking through the limitations of single-substrate machinery, this versatile flexographic press offers comprehensive compatibility across a wide spectrum of flexible materials. From standard adhesive paper and synthetic films to soft packaging, satin ribbons, and specialized wash care materials, the equipment adapts effortlessly to diverse manufacturing requirements.
Operating consistently at speeds up to 60 meters per minute, the machine guarantees exceptional efficiency for demanding production schedules. The flexible length adjustment design allows operators to change the printing length simply by swapping the printing cylinder. This rapid changeover capability perfectly accommodates both quick-turnaround small custom batches and massive, continuous long-run production.
Compared to traditional digital printing methods, this flexographic press significantly lowers the per-unit production cost. The precise ink management system effectively minimizes material waste, directly translating to a superior return on investment for high-volume procurement and continuous operational demands.
Built with a highly rigid, industrial-grade structural frame, the press maintains absolute stability even during maximum-speed operations, effectively dampening mechanical vibrations. This heavy-duty construction drastically reduces maintenance requirements and costly downtime. Combined with an intuitive, user-friendly interface, operators can run the equipment smoothly with minimal training, ensuring stable, long-term output.

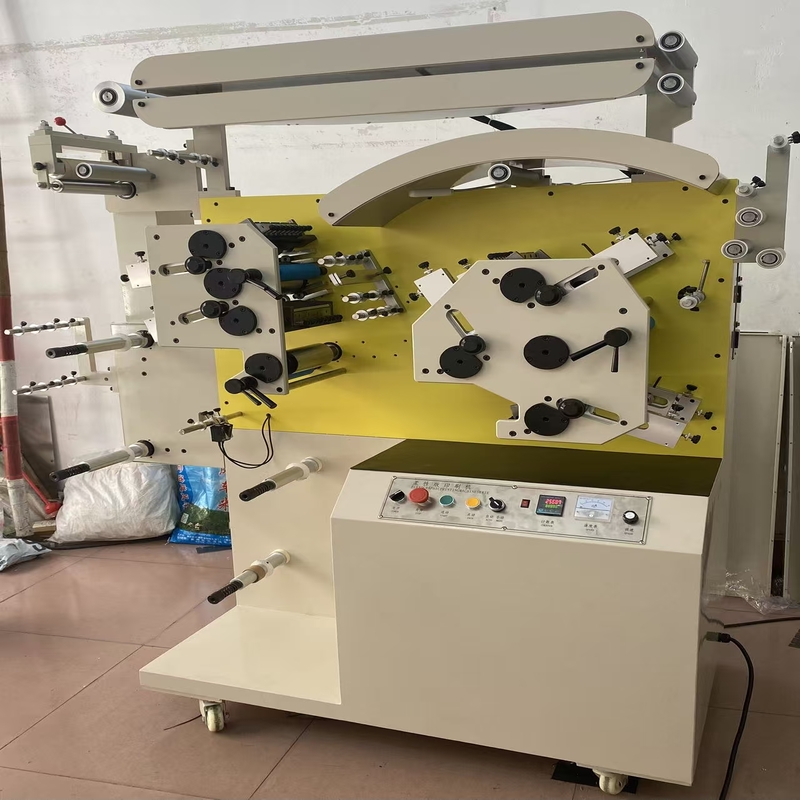

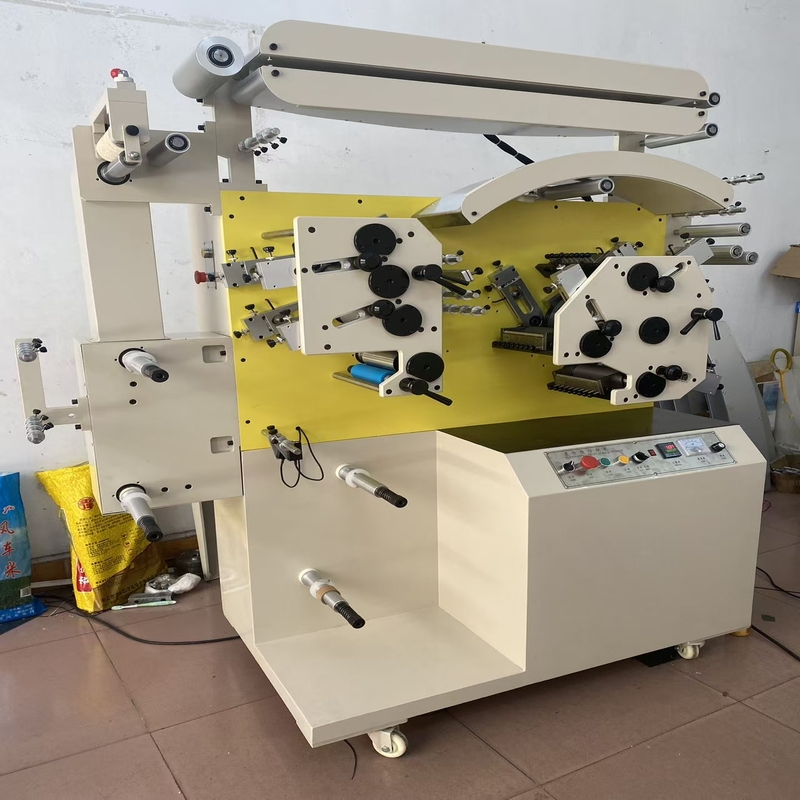

The HY3002 flexographic press is engineered with exacting specifications to meet rigorous industrial demands. Weighing a substantial 1000KG, the solid steel chassis grounds the machinery, eliminating micro-vibrations that could compromise print clarity at its maximum speed of 60m/min. The 3C+2C printing color configuration allows for complex, multi-layered visual designs within a compact 1800x700x1900 mm footprint. Powered by a highly efficient 1.5KW motor with an overall 4.7kw power draw, this unit balances energy consumption with relentless mechanical output. Every parameter listed below reflects the exact capabilities of the machine, ensuring buyers can integrate it efficiently into their existing manufacturing lines.
Model | HY3002 |
Printing Color | 3C+2C |
Printing area | 108-401mm |
Maximum printing width | 155mm |
Speed | 60m/min |
Power | 1.5KW |
Voltage | AC: 220V 50Hz/60Hz 4.7kw |
Dimension | 1800x700x1900 |
Weight | 1000KG |
Designed to serve multiple sectors, this printing machine delivers exceptional utility across various industrial applications, ensuring that every output meets rigorous commercial standards for clarity and endurance.
Textile & Garment Industry: Printing premium wash care labels and satin ribbons. Paired with our specialized drying process, the resulting prints exhibit outstanding resistance to intensive washing, heavy friction, and fading, easily meeting the strict compliance standards of the global apparel sector.
Label Production: Manufacturing crisp, highly scannable barcode labels, intricate brand stickers, and durable adhesive tags that maintain their visual integrity even in demanding retail and storage environments.
Packaging Industry: Producing custom product tapes, secure sealing tapes, and branded wrapping materials. The precise ink application ensures that company logos and handling instructions remain sharp and legible throughout the supply chain.
Logistics & Retail: Delivering customized tape printing solutions that enhance brand recognition on every shipped parcel. The durable, colorfast results mean that the printed tapes maintain their vibrant hues long after the ink has dried, resisting the scuffs and scrapes of daily transit.
Advertising & Branding: Generating premium, colorful promotional materials. The tactile finish and rich visual depth of the printed flexible substrates provide a sophisticated feel that resonates strongly with end consumers.
Operating the HY3002 is a streamlined process designed for maximum efficiency and minimal operator fatigue. The workflow integrates precise mechanical action with optimized thermal curing to deliver lasting results.
Material Loading: Begin by securely loading the unprinted tape, film, or label roll onto the primary unwinding shaft. The tension control system ensures the substrate feeds smoothly without wrinkling or stretching.
Ink Transmission: As the machine engages, listen to the quiet, rhythmic hum of the motor. Ink is precisely delivered to the flexo plate through the continuous rotation of the high-precision anilox roller, ensuring an even, controlled coating without pooling or starvation.
Design Transfer: The inked flexographic plate presses directly and firmly onto the moving material. This exact mechanical contact transfers the intricate design, resulting in crisp edges and solid color fills.
Initial Curing: The freshly printed tape immediately passes through the integrated drying unit. You can feel the controlled wave of heat as it flashes the surface moisture, fixing the print firmly to the substrate to prevent smudging during the rewind phase.
Deep Thermal Fixation: For applications requiring superior colorfastness—such as garment wash labels—transfer the printed rolls to an industrial oven. Baking the tape for 3 to 8 hours chemically bonds the pigments into the fibers, creating a permanent, fade-resistant finish.
Final Retrieval: Once fully cured and cooled, retrieve the finished tapes or labels. The final product boasts a smooth tactile feel and vibrant, permanent coloration ready for immediate application or shipment.
A1: The HY3002 is engineered for exceptional versatility. It flawlessly processes a wide array of flexible substrates, including standard adhesive paper, synthetic films, satin ribbons, and specialized wash care materials. This broad compatibility makes it an essential asset for operations spanning the packaging, branding, and garment manufacturing industries.
A2: Adjusting the printing length is a highly efficient mechanical process. Operators simply need to replace the printing cylinder to match the required dimensions of the new job. This modular design minimizes setup time, allowing your facility to pivot quickly between distinct custom orders and maximize daily throughput.
A3: The machine features a built-in drying unit that provides immediate, standard curing to prevent smudging during the continuous reel-to-reel process. However, to achieve industrial-grade colorfastness—particularly for textiles subjected to heavy washing and friction—we strongly recommend a secondary curing phase where the printed tape is oven-dried for 3 to 8 hours.
A4: We understand the complexities of global sourcing and support flexible, secure payment structures, including T/T (Telegraphic Transfer) and L/C (Letter of Credit). Depending on your project timelines and budget requirements, we coordinate reliable international freight forwarding via air or sea, ensuring your capital equipment arrives on schedule.
A5: Protecting your investment is our priority. The entire 1000KG printing press is meticulously anchored and encased in heavy-duty, standard export wooden crates. This rigid packaging provides superior protection against moisture, impact, and vibration during long-haul international transportation, ensuring the equipment arrives in pristine, ready-to-install condition.
