ZCCUTTER has been deeply engaged in the die cutting sample making industry for 15 years. We focus on the research and development of die-free sample cutting technology, acting as an advocate and pioneer in the industry. Drawing on rich practical experience, we provide efficient and accurate digital cutting solutions, winning wide market recognition.
Updated through six generations of technological iteration, the equipment integrates cutting, half-cutting and punching functions. It runs steadily with high working efficiency and has served nearly thousands of enterprises. Equipped with a 25m ultra-long body and super large cutting format, it efficiently processes oversized workpieces. It is applicable to sample cutting of electronic materials, composite materials, foams and new energy auxiliary materials.
Item | Specification |
|---|---|
Processing Function | Orbital vibration cutting, half cutting, laser positioning |
Adsorption System | 3KW air pump, four-zone separated adsorption |
Effective Cutting Area | 1400*1000mm |
Overall Dimension | 2350×1600×1600mm |
Body Specification | 25 meters in total length, supporting oversized cutting work |
1 set of main machine, compatible with pneumatic cutter and half penetration cutter, equipped with laser positioning
Built-in professional control software
1 set of vacuum pump
Complete tool kit
PLC touch screen control system
20 pieces of standard original blades
Computer and air compressor to be prepared by users
Applicable Materials: 3M adhesive, PVC, PET film, foam material, sponge, silicone foam, rubber, graphene gasket and more
Fixing Method: Vacuum adsorption
Adopts aviation aluminum alloy beam and integrally welded frame, featuring stable structure and smooth long-distance operation
One-piece five-sided gantry milling ensures excellent mechanical precision
Aluminum honeycomb adsorption platform provides even suction to prevent material displacement
Delta servo drive and rack and pinion transmission offer strong power and long service life
Imported wear-resistant felt tabletop resists cutting abrasion
Supports platform leveling and automatic tool setting for easy operation
Pneumatic vibration cutter: suitable for leather, fabric, PVC, PP film and special coated foam cutting
Half penetration cutter: designed for precise half cutting of 3M adhesive and coated materials
Tungsten blades in multiple specifications fit materials of different thicknesses
Special felt pad protects table surface and guarantees flat cutting effect

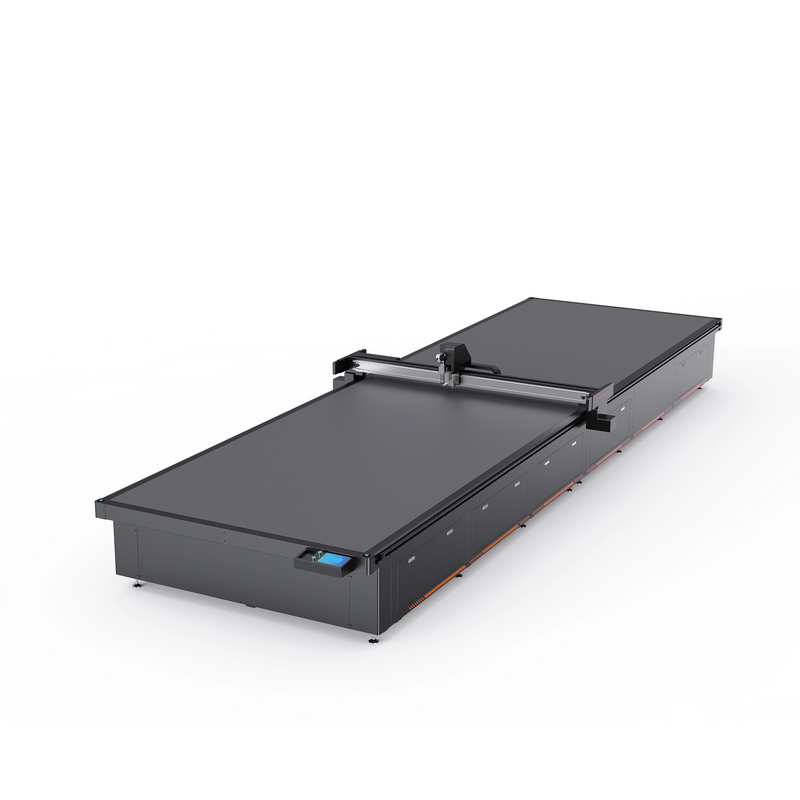

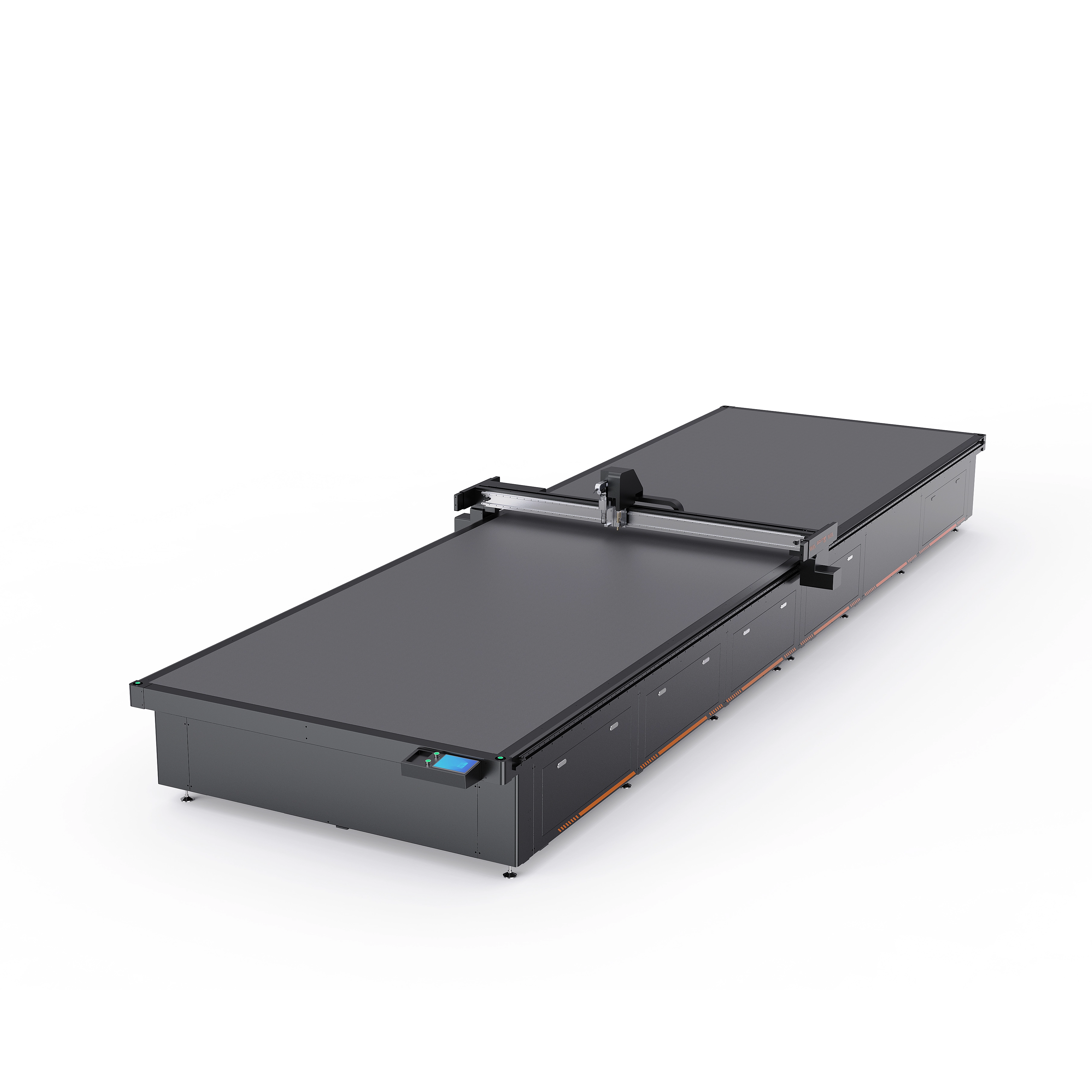

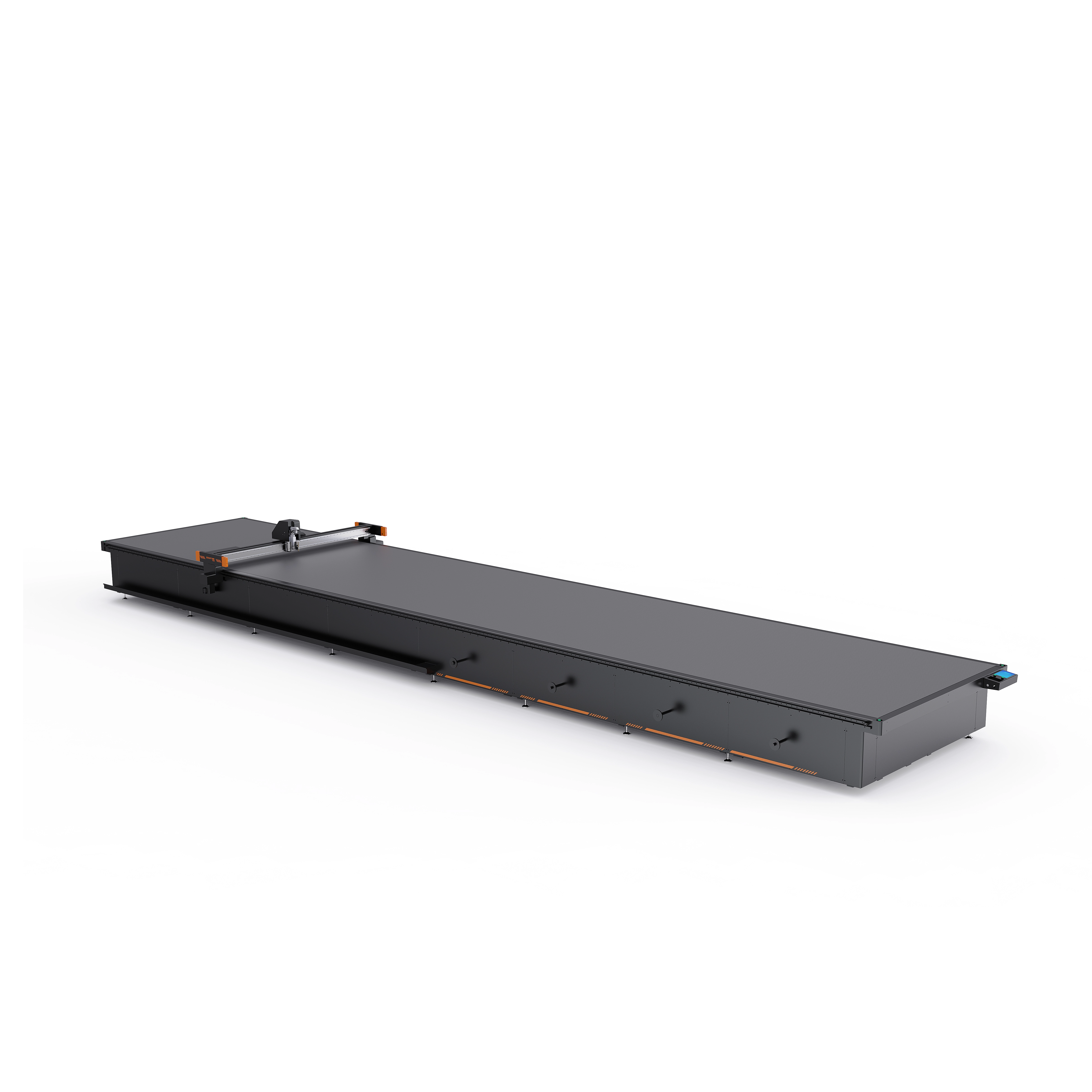

This six-axis high-speed cutter adopts rack and pinion transmission and interchangeable single tool seat. Users can switch freely between pneumatic vibration cutting and half cutting modes. The 25m ultra-long body realizes extended cutting stroke, processing bulk raw materials efficiently. It handles flexible and composite materials within 0-60mm thickness for sample making and small-batch production with neat cutting edges, accelerating sample delivery and order acquisition.
Ideal for 3C electronics, new energy accessories, packaging printing, rubber and plastic industries. It processes carbon steel gaskets, adhesive materials, foam accessories and sealing parts. The large cutting size meets demands of oversized sheet processing, sample trial and small-scale mass production.
Zhencai Technology devotes itself to R&D and manufacturing of post-processing die cutting equipment for new energy, 3C electronic and packaging materials. Boast strong R&D capacity, sophisticated production technology and comprehensive service network. ZCCUTTER intelligent cutting machines achieve high automation and stable processing quality, cutting labor costs effectively. Compatible with diverse materials and large-size processing requirements, our products satisfy demands of various manufacturers.
Insisting on innovation, professionalism and high efficiency, we keep upgrading equipment performance and supply premium cutting devices worldwide, promoting intelligent transformation of manufacturing industry.
